Vehicle Exploded View - APRILIA MOJITO 125 1999-2001 APRILIA

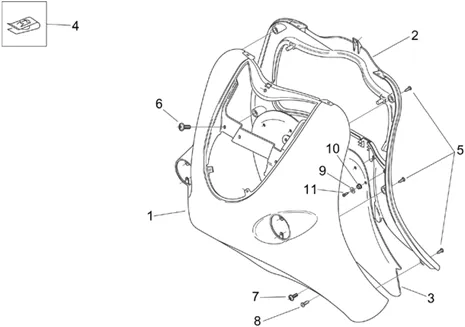

Chassis : 28.06 CARROSSERIE AV. - TABLIER
Carrosserie av. - Tablier
Search
AP8158468 - TABLIER INT

1
P2R reference P2R reference 51658
Maker reference Maker reference AP8158468

AP8158468 - TABLIER INT

More information

Quantity required : 1

AP8158472 - TABLIER ORANG

1
P2R reference P2R reference 51662
Maker reference Maker reference AP8158472

AP8158472 - TABLIER ORANG

More information

Quantity required : 1

AP8158467 - TABLIER INTER BLEU

1
P2R reference P2R reference 51657
Maker reference Maker reference AP8158467

AP8158467 - TABLIER INTER BLEU

More information

Quantity required : 1

Tab. AV noir volcan;

1
P2R reference P2R reference
Maker reference Maker reference AP8249092

Tab. AV noir volcan;

AP8158471 - TAB.AV.BLEU VARADERO;

1
P2R reference P2R reference 51661
Maker reference Maker reference AP8158471

AP8158471 - TAB.AV.BLEU VARADERO;

More information

Quantity required : 1

AP8158470 - TAB.AV.NOI.APRILIA.;

1
P2R reference P2R reference 51660
Maker reference Maker reference AP8158470

AP8158470-TAB. AV. NOI. APRILIA.

More information

Quantity required : 1

AP8158475 - TABLIER INTER ROUGE

1
P2R reference P2R reference 51664
Maker reference Maker reference AP8158475

AP8158475 - TABLIER INTER ROUGE

More information

Quantity required : 1

AP8158473 - TABLIER AVT AZ=8258129

1
P2R reference P2R reference 51663
Maker reference Maker reference AP8158473

AP8158473 - TABLIER AVT AZ=8258129

More information

Quantity required : 1

Tab. int.orange;

2
P2R reference P2R reference
Maker reference Maker reference AP8249034

Tab. int.orange;

Tab. int.bleu reef;

2
P2R reference P2R reference
Maker reference Maker reference AP8249055

Tab. int.bleu reef;

Tablier int. noir;

2
P2R reference P2R reference
Maker reference Maker reference AP8249076

Tablier int. noir;

AP8249207 - TABLIER INT.NOIR APRILIA;

2
P2R reference P2R reference 58747
Maker reference Maker reference AP8249207

AP8249207-LEG SHIELD INT. BLACK APRILIA

More information

Quantity required : 1

Tablier interne bleu claire;

2
P2R reference P2R reference
Maker reference Maker reference AP8258113

Tablier interne bleu claire;

AP8139878 - TABLIER INT.ROUGE C.;

2
P2R reference P2R reference 49425
Maker reference Maker reference AP8139878

AP8139878-LEG SHIELD INT. RED C.

More information

Quantity required : 1

AP8148011 - TABLIER INT VERT A.

2
P2R reference P2R reference 50261
Maker reference Maker reference AP8148011

AP8148011 - TABLIER INT VERT A.

More information

Quantity required : 1

AP8248963 - TAB.INT.BLEU VARADERO;

2
P2R reference P2R reference 58702
Maker reference Maker reference AP8248963

AP8248963 - TAB.INT.BLEU VARADERO;

More information

Quantity required : 1

AP8178134 - PROTEZIONE ANTIACQUA

3
P2R reference P2R reference 53872
Maker reference Maker reference AP8178134

AP8178134 - PROTEZIONE ANTIACQUA

More information

Quantity required : 1

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-AP8202449

4
P2R reference P2R reference 72157
Maker reference Maker reference AP8202449

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-AP8202449

More information

Quantity required : 3

SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413

5
P2R reference P2R reference 71876
Maker reference Maker reference AP8150413

SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413

More information

Quantity required : 6

SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246

6
P2R reference P2R reference 71933
Maker reference Maker reference AP8152246

SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246

More information

Quantity required : 2

SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298

7
P2R reference P2R reference 71957
Maker reference Maker reference AP8152298

SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298

More information

Quantity required : 1

SCREW PARKER (4, 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152351

8
P2R reference P2R reference 71975
Maker reference Maker reference AP8152351

SCREW PARKER (4, 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152351

More information

Quantity required : 1

WASHER PLATE (4. 3X12X1) OEM PIAGGIO COMMON A LA RANGE-AP8150011

9
P2R reference P2R reference 71804
Maker reference Maker reference AP8150011

WASHER PLATE (4. 3X12X1) OEM PIAGGIO COMMON A LA RANGE-AP8150011

More information

Quantity required : 4

BUSH EN T INNER 6 MM OEM PIAGGIO COMMON A LA RANGE-AP8121811

10
P2R reference P2R reference 71488
Maker reference Maker reference AP8121811

BUSH EN T INNER 6 MM OEM PIAGGIO COMMON A LA RANGE-AP8121811

More information

Quantity required : 4

SCREW CRUCIFORME (2. 9X12) TARAUD FOR PLASTIQUE INOX OEM PIAGGIO COMMON A LA RANGE-AP8150421

11
P2R reference P2R reference 71879
Maker reference Maker reference AP8150421

SCREW CRUCIFORME (2. 9X12) TARAUD FOR PLASTIQUE INOX OEM PIAGGIO COMMON A LA RANGE-AP8150421

More information

Quantity required : 4
