Vehicle Exploded View - APRILIA MOJITO 125 1999-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

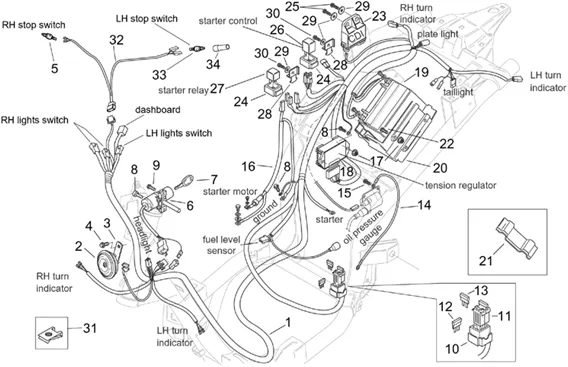

Chassis : 28.35 CIRCUIT ELECTRIQUE - CUSTOM
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/256/Mojito_125_1999-2001_28.35.PNG)
1 |
AP8124727 - CABLAGE PRINCIPAL More informationQuantity required : 1 |
||||||
|
2 |
AP8124530 - KLAXON; More informationQuantity required : 1 |
||||||
|
3 |
AP8134627 - RESSORT SUPPORT; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
4 |
SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/7/img/72327.jpg)
5 |
CONTACTEUR DE STOP OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI/APRILIA 50-125 MOJITO, 650 PEGASO, 1000 CAPONORD-AP8224192 More informationQuantity required : 1 |
||||||
|
6 |
AP8124886 - BLOC DEMARREUR-BLOC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/4/2/3/img/45423.jpg)
7 |
EBAUCHE DE CLE FRAISEE WITHOUT TRANSPONDEUR OEM APRILIA COMMON A LA RANGE-AP8104613 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
8 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/9/img/71919.jpg)
9 |
SCREW A ARRACHEMENT/AUTO-CASSANTE TH (6X17) OEM PIAGGIO COMMON A LA RANGE-AP8152140 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/7/img/71277.jpg)
10 |
RUBBER DOOR FUSIBLES OEM PIAGGIO COMMON A LA RANGE-AP8112811 More informationQuantity required : 1 |
||||||
|
11 |
AP8120754-RUBBER P-FUSIBLES More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/9/9/img/73399.jpg)
12 |
BLADE FUSE STANDARD 15A OEM PIAGGIO COMMON A LA RANGE-CM225715 More informationQuantity required : 1 |
||||||
|
13 |
CM225607-FUSIBLE More informationQuantity required : 1 |
||||||
|
14 |
CABLE MASSE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/8/img/71938.jpg)
15 |
SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152272 More informationQuantity required : 2 |
||||||
|
16 |
GROUPE CABLES |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
17 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/9/1/img/67191.jpg)
18 |
REGULATEUR DE TENSION SCOOT OEM PIAGGIO 50 ZIP 2009 >, TYPHOON 2006 >, FLY 2005 >, LIBERTY 2006 >, NRG POWER 2005 > VESPA LX 2005 >, VESPA-S 2007 >/GILERA 50 STALKER 2005 >, RUNNER 2005 >-58096R More informationQuantity required : 1 |
||||||
|
19 |
BATTERY 12V 9AH YTX9-BS OEM PIAGGIO COMMON A LA RANGE-498239 More informationQuantity required : 1 |
||||||
|
20 |
Boîtier batterie; |
||||||
|
21 |
Boîte batterie fermeture; |
||||||
|
22 |
SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/5/7/img/65857.jpg)
23 |
HOUSING CDI OEM PIAGGIO 125 LIBERTY, SFERA, HEXAGON, VESPA ET4 < 2005 (WITHOUT DECODEUR) (VERSION WITH DECODEUR INDISPONIBLE)-1R000005 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/9/img/72289.jpg)
24 |
RUBBER BRACKET RELAIS OEM PIAGGIO COMMON A LA RANGE-AP8220546 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/0/img/71940.jpg)
25 |
SCREW FLANGE TH (5X20) OEM PIAGGIO COMMON A LA RANGE-AP8152274 More informationQuantity required : 2 |
||||||
|
26 |
DISP DEM |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/3/img/67203.jpg)
27 |
RELAIS STARTER MOTOR MAXI SCOOTER OEM PIAGGIO 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250-300 ATLANTIC (12V-80A)-58115R More informationQuantity required : 1 |
||||||
|
28 |
AP8234094-BRACKET P-FUSIBLES More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/6/img/71806.jpg)
29 |
WASHER PLATE (5. 5X15X1. 6) OEM PIAGGIO COMMU A LA RANGE-AP8150013 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
30 |
SCREW FLANGE TH (5X15) OEM PIAGGIO COMMON A LA RANGE-AP8152273 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
31 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 6 |
||||||
|
32 |
AP8224205 - CABLAGE INTERR. STOP; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/9/img/67189.jpg)
33 |
INTERRUPTEUR LAMP STOP OEM PIAGGIO 50 NRG, ZIP, TYPHOON, LIBERTY, 125 X9, VESPA LXV, 250-300 VESPA GTV/APRILIA 50 SR H2O, 125 ATLANTIC, RS, SPORT-CITY/GILERA 50 STALKER-580953 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/0/img/72270.jpg)
34 |
RUBBER CONTACTEUR DE STOP OEM DERBI 50 SENDA 2018 >/GILERA 50 SMT 2018 >-AP8220135 More informationQuantity required : 1 |
