Vehicle Exploded View - GILERA EASY MOVING 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

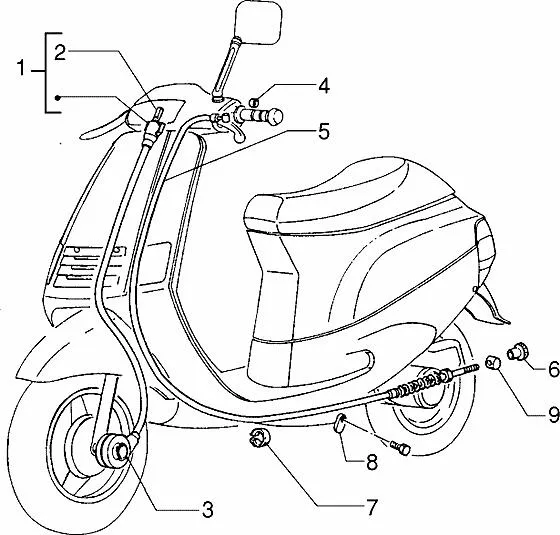

Transmisisons : T35 TRANSMISSIONS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/671/Easy_Moving_1998-2005_T35.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/3/5/6/img/80356.jpg)
1 |
CABLE/CONTROL/TRANSMISSION DE INSTRUMENT CLUSTER OEM PIAGGIO 20 ZIP RST 1998 > 2004-574331 More informationQuantity required : 1 |
||||||
2 |
574330 - CABLE COMPTEUR ZIP ZIP FR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/3/7/6/img/77376.jpg)
3 |
SPEEDOMETER SOCKET "PIAGGIO GENUINE PART" 50 ZIP 1995>1999 -272356- More informationQuantity required : 1 |
||||||
|
4 |
178709-EMBOUT More informationQuantity required : 1 |
||||||
|
5 |
TRANS FREIN AR |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/8/img/66088.jpg)
6 |
NUT REGLAGE BRAKE REAR OEM PIAGGIO COMMON A LA RANGE-270310 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/3/4/2/img/77342.jpg)
7 |
CLAMP GUIDE HOSE OF BRAKE OEM PIAGGIO 50 ZIP 4T-271536 More informationQuantity required : 1 |
||||||
|
8 |
PLAQUETTE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/4/img/65794.jpg)
9 |
PIVOT TRANSMISSION BRAKE REAR OEM PIAGGIO COMMON A TOUTE LA RANGE-179640 More informationQuantity required : 1 |
