Vehicle Exploded View - GILERA EASY MOVING 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

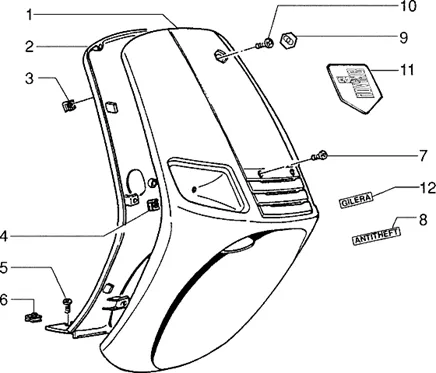

Châssis : T19 TABLIERS-MASQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/671/Easy_Moving_1998-2005_T19.PNG)
1 |
9159005 - FACE AVT BRUT More informationQuantity required : 1 |
||||||
|
1 |
FACE AV JAUNE 932 |
||||||
|
1 |
TABLIER |
||||||
|
2 |
COUNTER SHIELD "PIAGGIO GENUINE PART" 50 ZIP RST 1998>2004 -575696000C- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
3 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
|
4 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
5 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
6 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/4/img/66034.jpg)
7 |
SCREW CRUCIFORME (D6) DE FAIRING OEM PIAGGIO COMMON A TOUTE LA RANGE-259348 More informationQuantity required : 3 |
||||||
|
8 |
296819 - MONOGRAMME More informationQuantity required : 1 |
||||||
|
9 |
|
||||||
|
10 |
SCREW CRUCIFORME (D6) DE FAIRING OEM PIAGGIO COMMON A TOUTE LA RANGE-259348 More informationQuantity required : 1 |
||||||
|
11 |
MONOGRAMME |
||||||
|
12 |
MONOGRAMME |
