Vehicle Exploded View - GILERA EASY MOVING 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

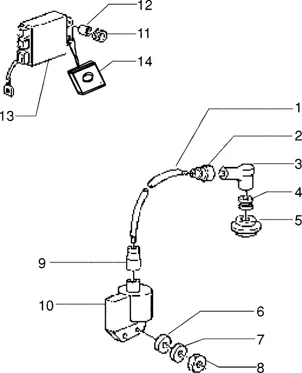

Connexions électriques : T36/A DISPOSITIFS ELECTRIQUES POUR VÉHICULES AVEC ANTISTART
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/671/Easy_Moving_1998-2005_T36_A.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/8/img/65668.jpg)
1 |
CABLE HAUTE TENSION OEM PIAGGIO COMMON A TOUTE LA RANGE-080341 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/2/2/img/68522.jpg)
2 |
ANTIPARASITE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-825186 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/5/0/3/img/74503.JPG)
3 |
ANTIPARASITE COMMON A LA RANGE PIAGGIO < 2005-103936 More informationQuantity required : 1 |
||||||
4 |
114164 - CAPUCHON More informationQuantity required : 1 |
||||||
|
5 |
288633-CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/8/img/65428.jpg)
6 |
WASHER PLATE (5, 2X18X1, 5) OEM PIAGGIO COMMON A LA RANGE-0166866 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
7 |
WASHER GROWER (5, 1X8, 5X1, 5) OEM PIAGGIO COMMON A LA RANGE-016405 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/0/img/65460.jpg)
8 |
NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/6/img/65966.jpg)
9 |
CAPUCHON ISOLANT OEM PIAGGIO COMMON A LA RANGE-231571 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/8/4/img/68584.jpg)
10 |
BOBINE OEM PIAGGIO 125 TYPHOON 2T, SKIPPER 2T, SFERA, VESPA ET4, HEXAGON 2T 1998 > 2005, 50 TYPHOON, ZIP 1998 > 2005/GILERA 125 RUNNER 2T 1998 > 2005, MOJITO 1998 > 2005-826115 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/3/2/img/65932.jpg)
11 |
RUBBER/SILENBLOC (8MM) OEM PIAGGIO COMMON A LA RANGE-217163 More informationQuantity required : 2 |
||||||
|
12 |
217164 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
13 |
DISPOSITIF |
||||||
|
14 |
BOITIER TELEC ALARM |
