Vehicle Exploded View - GILERA EASY MOVING 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

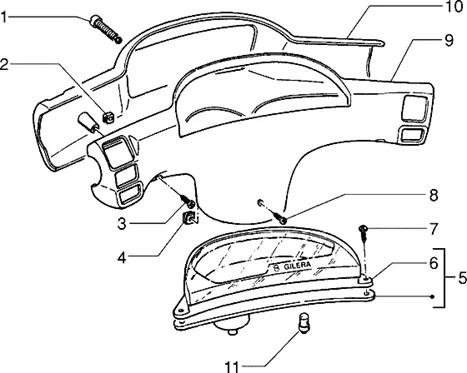

Guidon : T31 COMPTEUR KILOMETRIQUE-COUVERCLES DU GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/671/Easy_Moving_1998-2005_T31.PNG)
1 |
268139 - VIS More informationQuantity required : 1 |
||||||
|
2 |
268054 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/5/img/66025.jpg)
3 |
SCREW AUTOTARAUDEUSE (3X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-258146 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/5/img/72925.jpg)
4 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017409 More informationQuantity required : 1 |
||||||
|
5 |
COMPTEUR |
||||||
|
6 |
COUVERCLE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/6/img/63856.jpg)
7 |
SCREW PARKER (4, 2X19) CRUCIFORME DE INDICATOR OU FAIRING OEM PIAGGIO COMMON A TOUTE LA RANGE-008457 More informationQuantity required : 4 |
||||||
|
8 |
SCREW PARKER (4, 2X19) CRUCIFORME DE INDICATOR OU FAIRING OEM PIAGGIO COMMON A TOUTE LA RANGE-008457 More informationQuantity required : 1 |
||||||
|
9 |
PROTEC GUIDON NOIRE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/8/8/2/img/79882.jpg)
10 |
HANDLEBAR COVER "PIAGGIO GENUINE PART" PIAGGIO 50 ZIP RST 1995>1999 RAW TO BE PAINT -563006 More informationQuantity required : 1 |
||||||
|
10 |
LENKERDECKEL LACK. ZIP FAST: GELB 932 |
||||||
|
10 |
COUR.GUIDON |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/6/0/img/65760.jpg)
11 |
AMPOULE/LAMPE 12V 1, 2W CULOT W2X4. 6D BULB T5 TEMOIN WHITE OEM PIAGGIO COMMON A LA RANGE-164634 More informationQuantity required : 5 |
