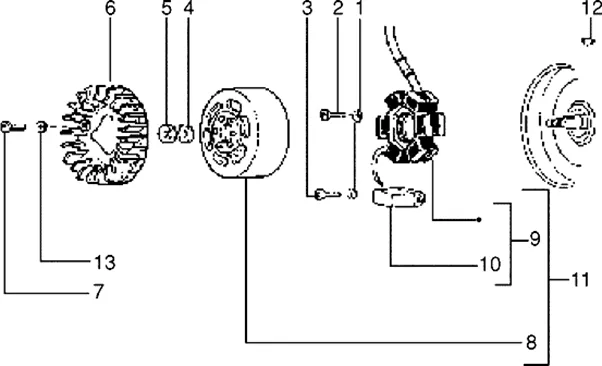

Vehicle Exploded View - GILERA EASY MOVING 50 1998-2005 GILERA

Moteur : T10 VOLANT MAGNETIQUE
Volant magnetique
Search
WASHER (5, 3X10X0, 5) OEM PIAGGIO COMMON A LA RANGE-006975

1
P2R reference P2R reference 63840
Maker reference Maker reference 0069755

WASHER (5, 3X10X0, 5) OEM PIAGGIO COMMON A LA RANGE-006975

More information

Quantity required : 5

SCREW CRUCIFORME (5X21) OEM PIAGGIO COMMON A LA RANGE-015856

2
P2R reference P2R reference 65399
Maker reference Maker reference 0158565

SCREW CRUCIFORME (5X21) OEM PIAGGIO COMMON A LA RANGE-015856

More information

Quantity required : 3

SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A TOUTE LA RANGE-015585

3
P2R reference P2R reference 65383
Maker reference Maker reference 0155855

SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A TOUTE LA RANGE-015585

More information

Quantity required : 2

WASHER PLATE (20X10. 2X2)-286328

4
P2R reference P2R reference 66172
Maker reference Maker reference 286328

WASHER PLATE (20X10. 2X2)-286328

More information

Quantity required : 1

NUT (10X1. 25) OEM PIAGGIO COMMON A LA RANGE-021110

5
P2R reference P2R reference 65599
Maker reference Maker reference 0211105

NUT (10X1. 25) OEM PIAGGIO COMMON A LA RANGE-021110

More information

Quantity required : 1

COOLING FAN "PIAGGIO GENUINE PARTS" COMMON FOR SCOOTER 50cc - 1998>2005 -289338

6
P2R reference P2R reference 77580
Maker reference Maker reference 289338

COOLING FAN "PIAGGIO GENUINE PARTS" COMMON FOR SCOOTER 50CC - 1998>2005 -289338

More information

Quantity required : 1

SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A TOUTE LA RANGE-015585

7
P2R reference P2R reference 65383
Maker reference Maker reference 0155855

SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A TOUTE LA RANGE-015585

More information

Quantity required : 3

ROTOR (KOKUSAN) OEM PIAGGIO 50 FLY 2000 >, ZIP 2000 >, LIBERTY 2000 >, VESPA LX 2000 >, PRIMAVERA 2013 >, TYPHOON 2005 >, NRG 2000 >/GILERA 50 RUNNER 2000 >, STALKER 2000 >/APRILIA SR 2003 >-584526

8
P2R reference P2R reference 67303
Maker reference Maker reference 584526

ROTOR (KOKUSAN) OEM PIAGGIO 50 FLY 2000 >, ZIP 2000 >, LIBERTY 2000 >, VESPA LX 2000 >, PRIMAVERA 2013 >, TYPHOON 2005 >, NRG 2000 >/GILERA 50 RUNNER 2000 >, STALKER 2000 >/APRILIA SR 2003 >-584526

More information

Quantity required : 1

STATOR THUNDERBOLT

9
P2R reference P2R reference
Maker reference Maker reference 293506

STATOR THUNDERBOLT

STATOR OEM PIAGGIO 50 TYPHOON, NRG, NTT, SFERA, LIBERTY, ZIP RST, VESPA ET2 1998 > 2005/GILERA 50 STALKER, RUNNER 1998 > 2005-830294

9
P2R reference P2R reference 92851
Maker reference Maker reference 830294

STATOR OEM PIAGGIO 50 TYPHOON, NRG, NTT, SFERA, LIBERTY, ZIP RST, VESPA ET2 1998 > 2005/GILERA 50 STALKER, RUNNER 1998 > 2005-830294

More information

Quantity required : 1

498865 - CAPTEUR

10
P2R reference P2R reference 66980
Maker reference Maker reference 498865

498865-SENSOR

More information

Quantity required : 1

830293 - VOLANT MAG EX 293489

11
P2R reference P2R reference 92850
Maker reference Maker reference 830293

830293-VOLANT MAG EX 293489

More information

Quantity required : 1

VOLANT+STATOR THUNDERBOLT

11
P2R reference P2R reference
Maker reference Maker reference 2935055

VOLANT+STATOR THUNDERBOLT

CLAVETTE IGNITION OEM PIAGGIO/APRILIA/GILERA/MOTO GUZZI/VESPA COMMON A LA RANGE-000267

12
P2R reference P2R reference 63721
Maker reference Maker reference 0002675

CLAVETTE IGNITION OEM PIAGGIO/APRILIA/GILERA/MOTO GUZZI/VESPA COMMON A LA RANGE-000267

More information

Quantity required : 1

WASHER (5, 3X10X0, 5) OEM PIAGGIO COMMON A LA RANGE-006975

13
P2R reference P2R reference 63840
Maker reference Maker reference 0069755

WASHER (5, 3X10X0, 5) OEM PIAGGIO COMMON A LA RANGE-006975

More information

Quantity required : 3
