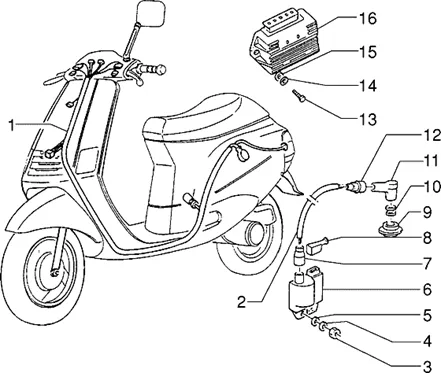

Vehicle Exploded View - GILERA EASY MOVING 50 1998-2005

	P2R reference
	Maker reference	294191

COMMUTATEUR

	P2R reference	65970
	Maker reference	234390

BATTERY 12V 4AH YB4L-B OEM PIAGGIO COMMON A LA RANGE-234390

	P2R reference	77648
	Maker reference	291919

291919 - GROUPE CABLES

	P2R reference
	Maker reference	292814

GROUPE CABLES

	P2R reference	65668
	Maker reference	0803415

CABLE HAUTE TENSION OEM PIAGGIO COMMON A TOUTE LA RANGE-080341

	P2R reference	66252
	Maker reference	292364

BUTTON/CONTACTEUR AVERTISSEUR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 1998 > 2005-292364

	P2R reference	67203
	Maker reference	58115R

RELAIS STARTER MOTOR MAXI SCOOTER OEM PIAGGIO 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250-300 ATLANTIC (12V-80A)-58115R

	P2R reference	67172
	Maker reference	58034R

AVERTISSEUR OEM PIAGGIO 125 MP3, VESPA LX, PRIMAVERA, SPRINT/GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX-58034R

	P2R reference	65460
	Maker reference	0201055

NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105

	P2R reference	65380
	Maker reference	0155585

SCREW TFR (6X15) OEM PIAGGIO COMMON A LA RANGE-015558

	P2R reference	65415
	Maker reference	0164055

WASHER GROWER (5, 1X8, 5X1, 5) OEM PIAGGIO COMMON A LA RANGE-016405

	P2R reference	65416
	Maker reference	0164065

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

	P2R reference	63777
	Maker reference	0030565

WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056

	P2R reference	65428
	Maker reference	0166865

WASHER PLATE (5, 2X18X1, 5) OEM PIAGGIO COMMON A LA RANGE-0166866

	P2R reference	65637
	Maker reference	0310865

SCREW TH (6X12) OEM PIAGGIO COMMON A LA RANGE-031086

	P2R reference	65416
	Maker reference	0164065

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

	P2R reference	77838
	Maker reference	295652

SET OF CLES WITH BARILLET OEM PIAGGIO 50 ZIP 1998 > 2003-295652

	P2R reference	206088
	Maker reference	1D004175R

CENTRE CLIGNOTANTE 2 BROCHES OEM PIAGGIO COMMON A LA RANGE-1D004175R

	P2R reference	139463
	Maker reference	1792925

SET OF CLES WITH 3 BARILLETS (13 MM) OEM PIAGGIO 50 TYPHOON 1998 > 2005, ZIP RST 1998 > 2005, 125 SKIPPER 1998 > 2005, 125 VESPA PX 1998 >-1792925

	P2R reference	206088
	Maker reference	1D002376

CENTRE CLIGNOTANTE 2 BROCHES OEM PIAGGIO COMMON A LA RANGE-1D004175R

	P2R reference	85535
	Maker reference	638678

BOBINE IGNITION ELECTRONIC OEM PIAGGIO 50 TYPHOON, NRG, NTT, SFERA, LIBERTY, ZIP RST, VESPA ET2 1998 > 2005/GILERA 50 STALKER, RUNNER 1998 > 2005-638678

	P2R reference	66024
	Maker reference	257710

EBAUCHE DE CLE OEM PIAGGIO 50 NRG, TYPHOON, ZIP 1998 > 2005-257710

	P2R reference	66246
	Maker reference	291017

BRACKET ELASTIC CENTRE OEM PIAGGIO COMMON A LA RANGE-291017

	P2R reference	65966
	Maker reference	231571

CAPUCHON ISOLANT OEM PIAGGIO COMMON A LA RANGE-231571

	P2R reference	77948
	Maker reference	2977775

BODY DE LOCK OEM PIAGGIO 50 TYPHOON 1998 > 2009, NRG 1998 > 2004, ZIP 1995 > 1999/125 PX/GILERA 50 STALKER-2977775

	P2R reference
	Maker reference	291000

GROUPE DIODE

	P2R reference	66010
	Maker reference	255256

CAPUCHON ISOLANT ORIGNE PIAGGIO COMMON A LA RANGE-255256

	P2R reference	65784
	Maker reference	178559

PLATE DE MAINTIEN BODY DE LOCK OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-178559

	P2R reference	73681
	Maker reference	0069635

WASHER ELASTIC D3 OEM PIAGGIO COMMON A LA RANGE-006963

	P2R reference	77566
	Maker reference	288633

288633-CLAMP

	P2R reference
	Maker reference	259421

CORPS DE SERRURE

	P2R reference	65451
	Maker reference	0200035

020003-NUT S02000300

	P2R reference	74563
	Maker reference	114164

114164 - CAPUCHON

	P2R reference	77653
	Maker reference	292071

292071-SWITCH

	P2R reference
	Maker reference	292314

CONTACT

	P2R reference	66242
	Maker reference	290405

BRACKET DOOR FUSIBLE OEM PIAGGIO COMMON A LA RANGE-290405

	P2R reference	74503
	Maker reference	103936

ANTIPARASITE COMMON A LA RANGE PIAGGIO < 2005-103936

	P2R reference	65661
	Maker reference	0716715

CAPUCHON ISOLANT OEM PIAGGIO COMMON A LA RANGE-071671

	P2R reference	66273
	Maker reference	294398

BUTTON POUSSOIR DE STARTER MOTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 1998 > 2005-294398

	P2R reference	66278
	Maker reference	294917

SWITCH INDICATOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 1998 > 2005-294917

	P2R reference	65380
	Maker reference	0155585

SCREW TFR (6X15) OEM PIAGGIO COMMON A LA RANGE-015558

	P2R reference	66004
	Maker reference	252945

BLADE FUSE STANDARD 7, 5A OEM PIAGGIO COMMON A LA RANGE-252945

	P2R reference	65416
	Maker reference	0164065

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

	P2R reference	77603
	Maker reference	290402

DOOR FUSIBLES OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 1998 > 2005, 125 VESPA PX-290402

	P2R reference	63777
	Maker reference	0030565

WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056

	P2R reference	77731
	Maker reference	2940165

REGULATEUR (ANCIEN MONTAGE-5 BROCHES) OEM PIAGGIO 50 TYPHOON, NRG, NTT, SFERA, LIBERTY, ZIP RST, VESPA ET2 1998 > 2005/GILERA 50 STALKER, RUNNER 1998 > 2005-2940165
