Vehicle Exploded View - GILERA EASY MOVING 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

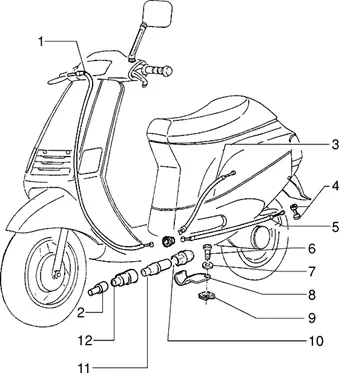

Transmisisons : T34 TRANSMISSIONS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/671/Easy_Moving_1998-2005_T34.PNG)
1 |
THROTTLE TRANSMISSION CABLE "PIAGGIO GENUINE PART" 50 ZIP, 125 SKIPPER 1998>2004 -268435- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/3/5/6/img/80356.jpg)
1 |
CABLE/CONTROL/TRANSMISSION DE INSTRUMENT CLUSTER OEM PIAGGIO 20 ZIP RST 1998 > 2004-574331 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/4/img/66084.jpg)
2 |
BUTEE DE GAINE DE REPARTITEUR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-269572 More informationQuantity required : 1 |
||||||
|
2 |
574330 - CABLE COMPTEUR ZIP ZIP FR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/2/0/0/img/77200.jpg)
3 |
CABLE/CONTROL/TRANSMISSION DE THROTTLE (DEDOUBLEUR-CARBU) OEM PIAGGIO 50 ZIP RST NRG EXTREME/GILERA 50 STALKER-268402 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/3/7/6/img/77376.jpg)
3 |
SPEEDOMETER SOCKET "PIAGGIO GENUINE PART" 50 ZIP 1995>1999 -272356- More informationQuantity required : 1 |
||||||
|
4 |
GROUPE VIS |
||||||
|
4 |
178709-EMBOUT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/7/1/7/img/79717.jpg)
5 |
CABLE/CONTROL/TRANSMISSION DE THROTTLE (DEDOUBLEUR/OIL PUMP) OEM PIAGGIO 50 LIBERTY, NRG, ZIP/GILERA 50 STALKER, RUNNER-560448 More informationQuantity required : 1 |
||||||
|
5 |
TRANS FREIN AR |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/0/img/65380.jpg)
6 |
SCREW TFR (6X15) OEM PIAGGIO COMMON A LA RANGE-015558 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/8/img/66088.jpg)
6 |
NUT REGLAGE BRAKE REAR OEM PIAGGIO COMMON A LA RANGE-270310 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
7 |
WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/3/4/2/img/77342.jpg)
7 |
CLAMP GUIDE HOSE OF BRAKE OEM PIAGGIO 50 ZIP 4T-271536 More informationQuantity required : 1 |
||||||
|
8 |
SUPPORT |
||||||
|
8 |
PLAQUETTE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
9 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/4/img/65794.jpg)
9 |
PIVOT TRANSMISSION BRAKE REAR OEM PIAGGIO COMMON A TOUTE LA RANGE-179640 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/8/img/66108.jpg)
10 |
PROTECTOR DE REPARTITEUR DE THROTTLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-271976 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/3/img/66083.jpg)
11 |
DEDOUBLEUR/REPARTITEUR OEM PIAGGIO 50 ZIP, FLY, LIBERTY, NRG/GILERA 50 STALKER, RUNNER (ENSEMBLE DE 3 PIECES-WITHOUT LES PROTECTIONS)-269571 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/9/img/66109.jpg)
12 |
PROTECTOR DU REPARTITEUR DE THROTTLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-271977 More informationQuantity required : 1 |
