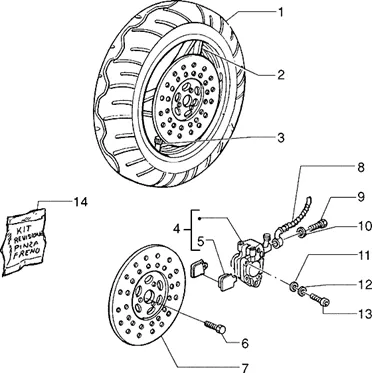

Vehicle Exploded View - GILERA EASY MOVING 50 1998-2005 GILERA

Suspensions-roues : T42 ROUE AV. - ETRIER DE FREIN
Roue AV. - Etrier de frein
Search
2675030003 - PNEU 90/90-10 50J TL MICHELIN S1

1
P2R reference P2R reference 66059
Maker reference Maker reference 2675030003

2675030003 - PNEU 90/90-10 50J TL MICHELIN S1

More information

Quantity required : 1

PNEU 90/90-10 TL PIRELLI SL26

1
P2R reference P2R reference
Maker reference Maker reference 269720

PNEU 90/90-10 TL PIRELLI SL26

ROUE AVT NOIRE

2
P2R reference P2R reference
Maker reference Maker reference 560639

ROUE AVT NOIRE

VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-270991

3
P2R reference P2R reference 66094
Maker reference Maker reference 270991

VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-270991

More information

Quantity required : 1

271880 - ETRIER FREIN AVT EX.271783

4
P2R reference P2R reference 77356
Maker reference Maker reference 271880

271880 - ETRIER FREIN AVT EX.271783

More information

Quantity required : 1

BRAKE PAD OEM PIAGGIO 50 TYPHOON AV, NRG AV 1998 > 2005/GILERA 50 RUNNER AV, STALKER AV 1998 > 2005 (PAIRE)-647172

5
P2R reference P2R reference 68012
Maker reference Maker reference 647172

BRAKE PAD OEM PIAGGIO 50 TYPHOON AV, NRG AV 1998 > 2005/GILERA 50 RUNNER AV, STALKER AV 1998 > 2005 (PAIRE)-647172

More information

Quantity required : 1

274801 - VIS EX 271657

6
P2R reference P2R reference 77476
Maker reference Maker reference 274801

274801 - VIS EX 271657

More information

Quantity required : 1

DISQUE FREIN AVT

7
P2R reference P2R reference
Maker reference Maker reference 271594

DISQUE FREIN AVT

271922 - TUBE FREIN AVT

8
P2R reference P2R reference 77360
Maker reference Maker reference 271922

271922 - TUBE FREIN AVT

More information

Quantity required : 1

SCREW BANJO FOR BRAKE OEM PIAGGIO COMMON A LA RANGE-265451

9
P2R reference P2R reference 66050
Maker reference Maker reference 265451

SCREW BANJO FOR BRAKE OEM PIAGGIO COMMON A LA RANGE-265451

More information

Quantity required : 1

GASKET CUIVRE (10X16X1) BRAKE CALIPER OEM PIAGGIO COMMON A TOUTE LA RANGE-127927

10
P2R reference P2R reference 65723
Maker reference Maker reference 127927

GASKET CUIVRE (10X16X1) BRAKE CALIPER OEM PIAGGIO COMMON A TOUTE LA RANGE-127927

More information

Quantity required : 2

WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058

11
P2R reference P2R reference 63779
Maker reference Maker reference 0030585

WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058

More information

Quantity required : 1

WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408

12
P2R reference P2R reference 65418
Maker reference Maker reference 0164085

WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408

More information

Quantity required : 1

SCREW BTR (8X25) CALIPER OU SHOCK ABSORBER OEM PIAGGIO COMMON A LA RANGE-597150

13
P2R reference P2R reference 67332
Maker reference Maker reference 597150

SCREW BTR (8X25) CALIPER OU SHOCK ABSORBER OEM PIAGGIO COMMON A LA RANGE-597150

More information

Quantity required : 1

KIT REVISION BRAKE CALIPER FRONT GRIMECA OEM PIAGGIO 50 COMMON A LA RANGE < 2005-498442

14
P2R reference P2R reference 79631
Maker reference Maker reference 498442

KIT REVISION BRAKE CALIPER FRONT GRIMECA OEM PIAGGIO 50 COMMON A LA RANGE < 2005-498442

More information

Quantity required : 1
