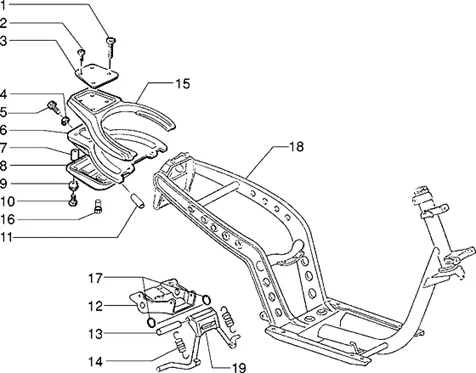

Vehicle Exploded View - GILERA EASY MOVING 50 1998-2005 GILERA

Châssis : T18 CHÂSSIS-BEQUILLE
Châssis-Bequille
Search
SCREW CRUCIFORME (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-271891

1
P2R reference P2R reference 66107
Maker reference Maker reference 271891

SCREW CRUCIFORME (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-271891

More information

Quantity required : 2

SCREW TBC (6X16) OEM PIAGGIO COMMON A LA RANGE-272836

2
P2R reference P2R reference 66117
Maker reference Maker reference 272836

SCREW TBC (6X16) OEM PIAGGIO COMMON A LA RANGE-272836

More information

Quantity required : 4

PLAQUE

3
P2R reference P2R reference
Maker reference Maker reference 272445

PLAQUE

RONDELLE

4
P2R reference P2R reference
Maker reference Maker reference 259414

RONDELLE

297582 - VIS

5
P2R reference P2R reference 154069
Maker reference Maker reference 297582

297582 - VIS

More information

Quantity required : 1

PORTE BAG AR

6
P2R reference P2R reference
Maker reference Maker reference 271814

PORTE BAG AR

ENTRETOISE

7
P2R reference P2R reference
Maker reference Maker reference 271888

ENTRETOISE

COUVERCLE AR INF

8
P2R reference P2R reference
Maker reference Maker reference 271798

COUVERCLE AR INF

ENTRETOISE

9
P2R reference P2R reference
Maker reference Maker reference 271890

ENTRETOISE

271889 - VIS

10
P2R reference P2R reference 77357
Maker reference Maker reference 271889

271889 - VIS

More information

Quantity required : 2

ENTRETOISE

11
P2R reference P2R reference
Maker reference Maker reference 259260

ENTRETOISE

BRACKET DE CENTRE STAND OEM PIAGGIO 50 TYPHOON, STALKER-272929

12
P2R reference P2R reference 66121
Maker reference Maker reference 272929

BRACKET DE CENTRE STAND OEM PIAGGIO 50 TYPHOON, STALKER-272929

More information

Quantity required : 1

SHAFT OF CENTRE STAND OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-583603

13
P2R reference P2R reference 67287
Maker reference Maker reference 583603

SHAFT OF CENTRE STAND OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-583603

More information

Quantity required : 1

SPRING DE CENTRE STAND OEM PIAGGIO 50 FLY, LIBERTY, NRG, ZIP, TYPHOON, VESPA-S, VESPA LX, PRIMAVERA, SPRINT/GILERA 50 RUNNER, STALKER/APRILIA 50 SR MOTARD, SPORT-CITY-278940

14
P2R reference P2R reference 66143
Maker reference Maker reference 278940

SPRING DE CENTRE STAND OEM PIAGGIO 50 FLY, LIBERTY, NRG, ZIP, TYPHOON, VESPA-S, VESPA LX, PRIMAVERA, SPRINT/GILERA 50 RUNNER, STALKER/APRILIA 50 SR MOTARD, SPORT-CITY-278940

More information

Quantity required : 2

4702865 - COPERT.PORT**

15
P2R reference P2R reference 78806
Maker reference Maker reference 4702865

4702865 - COPERT.PORT**

More information

Quantity required : 1

Pneu s. chambre

15
P2R reference P2R reference
Maker reference Maker reference 4702915

Pneu s. chambre

SCREW CRUCIFORME (D6) DE FAIRING OEM PIAGGIO COMMON A TOUTE LA RANGE-259348

16
P2R reference P2R reference 66034
Maker reference Maker reference 259348

SCREW CRUCIFORME (D6) DE FAIRING OEM PIAGGIO COMMON A TOUTE LA RANGE-259348

More information

Quantity required : 1

GASKET SHAFT OF STAND OEM PIAGGIO COMMON A LA RANGE SCOOTER 50CC 2T-271695

17
P2R reference P2R reference 66102
Maker reference Maker reference 271695

GASKET SHAFT OF STAND OEM PIAGGIO COMMON A LA RANGE SCOOTER 50CC 2T-271695

More information

Quantity required : 1

CADRE ZIP F-RIDER

18
P2R reference P2R reference
Maker reference Maker reference 2928821

CADRE ZIP F-RIDER

581226 - BEQUILLE CENTR CPLT

19
P2R reference P2R reference 81531
Maker reference Maker reference 581226

581226 - BEQUILLE CENTR CPLT

More information

Quantity required : 1
