Vehicle Exploded View - PIAGGIO VU APE CALESSINO 200 Ape Calessino 2007-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

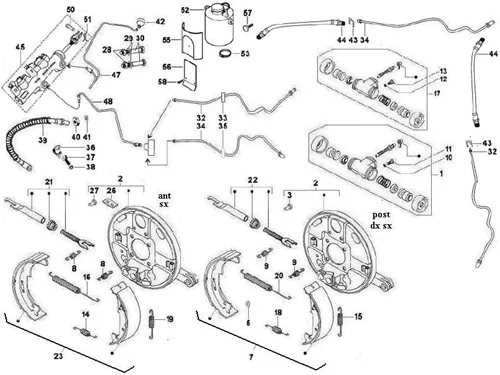

Transmisisons : 05.04 SYSTEME DE FREINAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/324/Ape_Calessino_2007-2012_05.04_20251008090510.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/3/0/3/img/116303.jpg)
1 |
CYLINDER OF BRAKE FRONT THREE-WHEELER APE CALESSINO 2007 < 2012/CLASSIC 206 >-587616 More informationQuantity required : 1 |
|||||||||
2 |
602120 DISC PATIN BRAKE More informationQuantity required : 1 |
|||||||||
|
2 |
602123 DISC More informationQuantity required : 1 |
|||||||||
|
2 |
616541 DISC PATIN BRAKE More informationQuantity required : 1 |
|||||||||
|
3 |
105498 TAQUET More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/9/img/63839.jpg)
5 |
WASHER ELASTIC (8. 4X15X0. 5) OEM PIAGGIO COMMON A LA RANGE-006968 More informationQuantity required : 1 |
|||||||||
|
6 |
WASHER ELASTIC (8. 4X15X0. 5) OEM PIAGGIO COMMON A LA RANGE-006968 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/6/2/7/img/117627.jpg)
7 |
MACHOIRES OF BRAKE REAR LEFT OEM PIAGGIO THREE-WHEELER APE CALESSINO 2007 > 2012, CLASSIC 2006 >-940005 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/6/2/6/img/117626.jpg)
7 |
MACHOIRES OF BRAKE REAR RIGHT OEM PIAGGIO THREE-WHEELER APE CALESSINO 2007 > 2012, CLASSIC 2006 >-940006 More informationQuantity required : 1 |
|||||||||
|
8 |
602497 PINCE DE RETENUE MACHOIRES More informationQuantity required : 1 |
|||||||||
|
9 |
602497 PINCE DE RETENUE MACHOIRES More informationQuantity required : 1 |
|||||||||
|
10 |
012536-WASHER More informationQuantity required : 2 |
|||||||||
|
11 |
063440 SCREW More informationQuantity required : 2 |
|||||||||
|
12 |
012536-WASHER More informationQuantity required : 1 |
|||||||||
|
13 |
063440 SCREW More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/5/3/3/img/110533.jpg)
14 |
SPRING DE BRAKE SHOE SET OEM PIAGGIO THREE-WHEELER APE-116088 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/3/9/img/111439.jpg)
15 |
SPRING DE BRAKE SHOE SET L = 69 OEM PIAGGIO THREE-WHEELER APE-178808 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/3/7/8/img/111378.jpg)
16 |
SPRING DE BRAKE SHOE SET (112. 5) OEM PIAGGIO THREE-WHEELER APE CLASSIC 2006 >, APE TM 703-245038 More informationQuantity required : 1 |
|||||||||
|
17 |
632148 CYLINDER BRAKE REAR More informationQuantity required : 1 |
|||||||||
|
18 |
SPRING DE BRAKE SHOE SET OEM PIAGGIO THREE-WHEELER APE-116088 More informationQuantity required : 1 |
|||||||||
|
19 |
SPRING DE BRAKE SHOE SET L = 69 OEM PIAGGIO THREE-WHEELER APE-178808 More informationQuantity required : 1 |
|||||||||
|
20 |
SPRING DE BRAKE SHOE SET (112. 5) OEM PIAGGIO THREE-WHEELER APE CLASSIC 2006 >, APE TM 703-245038 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/4/5/3/img/116453.jpg)
21 |
GROUP OF ADJUSTMENT OF SET OF BRAKE REAR LEFT OEM PIAGGIO TRIPOREUR APE 7M703-644326 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/4/5/2/img/116452.jpg)
22 |
644327 REGLAGE AUT AR G More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/9/0/img/151190.jpg)
23 |
MACHOIRES OF BRAKE FRONT OEM PIAGGIO THREE-WHEELER APE CALESSINO 2007 > 2012, CLASSIC 2006 >-940004 More informationQuantity required : 1 |
|||||||||
|
26 |
075765 - PLAQUETTE More informationQuantity required : 1 |
|||||||||
|
27 |
105498 TAQUET More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/5/img/65465.jpg)
28 |
NUT (M10) OEM PIAGGIO COMMON A LA RANGE-020110 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/9/6/6/img/109966.jpg)
29 |
WASHER SPRING (10. 5X17. 5X0. 8) OEM PIAGGIO COMMON A LA RANGE-006970 More informationQuantity required : 2 |
|||||||||
|
30 |
267068 - VITE More informationQuantity required : 2 |
|||||||||
|
32 |
644813 HOSE OF BRAKE REAR WHEEL LEFT More informationQuantity required : 1 |
|||||||||
|
34 |
644812 HOSE OF BRAKE REAR WHEEL RIGHT More informationQuantity required : 1 |
|||||||||
|
36 |
127928 PLATE More informationQuantity required : 1 |
|||||||||
|
37 |
587829 FITTING More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/3/img/65723.jpg)
38 |
GASKET CUIVRE (10X16X1) BRAKE CALIPER OEM PIAGGIO COMMON A TOUTE LA RANGE-127927 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/7/4/1/img/117741.jpg)
39 |
587624 - TUYAU More informationQuantity required : 1 |
|||||||||
|
40 |
021216 NUT S02121600 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/5/4/img/65654.jpg)
41 |
WASHER PLATE (16. 2X24X1. 4) OEM PIAGGIO COMMON A LA RANGE-048197 More informationQuantity required : 1 |
|||||||||
|
42 |
138237 CAPUCHON More informationQuantity required : 1 |
|||||||||
|
43 |
136916-PLATE More informationQuantity required : 1 |
|||||||||
|
44 |
644814R CANALISATION FREINS More informationQuantity required : 2 |
|||||||||
|
44 |
644814R CANALISATION FREINS More informationQuantity required : 2 |
|||||||||
|
45 |
605122 PUMP BRAKE More informationQuantity required : 1 |
|||||||||
|
47 |
616793 - TUYAU More informationQuantity required : 1 |
|||||||||
|
48 |
605252 HOSE More informationQuantity required : 1 |
|||||||||
|
50 |
POULIE |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/4/img/65354.jpg)
51 |
GOUPILLE (1. 8X18) OEM PIAGGIO COMMON A LA RANGE-012768 More informationQuantity required : 1 |
|||||||||
|
52 |
RESERVOIR HUILE |
|||||||||
|
53 |
632109 CLAMP More informationQuantity required : 4 |
|||||||||
|
54 |
658333 BRACKET More informationQuantity required : 1 |
|||||||||
|
55 |
658519 - PROTECT. POMPE More informationQuantity required : 1 |
|||||||||
|
56 |
660005 PROTECTOR More informationQuantity required : 1 |
|||||||||
|
57 |
POMELLO |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/2/img/65402.jpg)
58 |
SCREW AUTOFOREUSE (4, 2X9, 5) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015900 More informationQuantity required : 4 |
|||||||||
