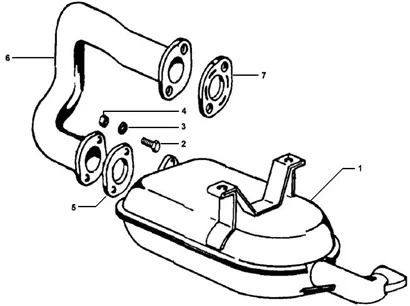

Vehicle Exploded View - PIAGGIO VU APE CALESSINO 200 Ape Calessino 2007-2012 PIAGGIO VU

Moteur : 01.42 SILENCIEUX
Silencieux
Search
ECHAPPEMENT

1
P2R reference P2R reference
Maker reference Maker reference 832685

ECHAPPEMENT

ARAND.PLANA MECANIZ. D12 DIN125 ZnB

2
P2R reference P2R reference
Maker reference Maker reference 00000031120

ARAND.PLANA MECANIZ. D12 DIN125 ZnB

WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408

3
P2R reference P2R reference 65418
Maker reference Maker reference 0164085

WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408

More information

Quantity required : 2

NUT (M8X6, 5) OEM PIAGGIO COMMON A LA RANGE-020108

4
P2R reference P2R reference 65463
Maker reference Maker reference 0201085

NUT (M8X6, 5) OEM PIAGGIO COMMON A LA RANGE-020108

More information

Quantity required : 2

430689 GASKET EXHAUST (EXHAUST) ADT-1T

5
P2R reference P2R reference 113934
Maker reference Maker reference 430689

430689 GASKET EXHAUST (EXHAUST) ADT-1T

More information

Quantity required : 1

L9543113 - TUYAU ECHAPP.

6
P2R reference P2R reference 120788
Maker reference Maker reference L9543113

L9543113 HOSE ECHAPP.

More information

Quantity required : 1

430690 GASKET EXHAUST (CYLINDER) ATD-1T

7
P2R reference P2R reference 113939
Maker reference Maker reference 430690

430690 GASKET EXHAUST (CYLINDER) ATD-1T

More information

Quantity required : 1
