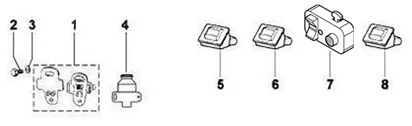

Installation électrique : 06.01 INVERSEURS - COMMUTATEURS - BOUTONS - INTERRUPTEURS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/324/Ape_Calessino_2007-2012_06.01_20251008090533.PNG)
1 |
616543 ZQUERRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/8/img/65408.jpg)
2 |
SCREW CRUCIFORME (4X12) OEM PIAGGIO COMMON A LA RANGE-015996 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/5/img/63775.jpg)
3 |
WASHER PLATE (4. 3X8X0. 5) OEM PIAGGIO COMMON A LA RANGE-003054 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/7/9/img/111479.jpg)
4 |
INTERRUPTEUR/BUTTON STOP OEM PIAGGIO THREE-WHEELER APE 50 2018 >, CALESSINO 2007 >, CLASSIC 2006 >-567498R More informationQuantity required : 1 |
||||||
|
5 |
632262 SWITCH More informationQuantity required : 1 |
||||||
|
6 |
INTERRUPTEUR DE HEADLAMP OEM PIAGGIO THREE-WHEELER APE CALESSINO, CLASSIC 2006 > 2017-645242R More informationQuantity required : 1 |
||||||
|
7 |
TURN SIGNAL SWITCH "PIAGGIO GENUINE PART" APE, CALESSINO -B073366 More informationQuantity required : 1 |
||||||
|
8 |
652082R - INTERRUPTEUR ESSUIS GLACE More informationQuantity required : 1 |
