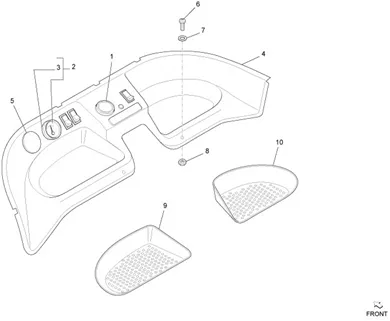

Guidon/direction : 03.04 METER COMBINATION - TABLEAU DE BORD VME
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/324/Ape_Calessino_2007-2012_03.04_20251008090416.PNG)
1 |
B004643 INSTRUMENT CLUSTER KMS More informationQuantity required : 1 |
||||||
|
2 |
661871 AMPERMETER More informationQuantity required : 1 |
||||||
|
3 |
661951 - CIRCLIPS More informationQuantity required : 2 |
||||||
|
4 |
B002271 PLANCHE More informationQuantity required : 1 |
||||||
|
5 |
B002299 CAP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/3/img/65403.jpg)
6 |
SCREW AUTOTARAUDEUSE (4. 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015911 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/5/img/65425.jpg)
7 |
WASHER PLATE (4. 5X12X1) OEM PIAGGIO COMMON A LA RANGE-016670 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/4/img/72924.jpg)
8 |
NUT SHEET METAL (4. 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017408 More informationQuantity required : 1 |
||||||
|
9 |
658831 - PORTE-OBJET More informationQuantity required : 1 |
||||||
|
10 |
658529 - PORTE-OBJET More informationQuantity required : 1 |
