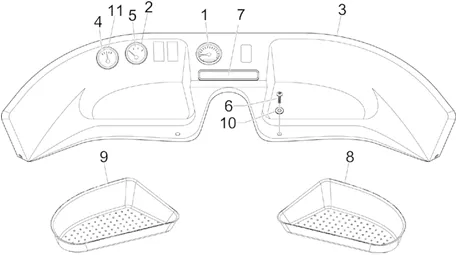

Guidon/direction : 03.02 GROUPE INSTRUMENTS - CRUSCOTTO
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/324/Ape_Calessino_2007-2012_03.02_20251008090411.PNG)
1 |
661873 - COMPTEUR KILOMETRIQUE More informationQuantity required : 1 |
||||||
|
2 |
661951 - CIRCLIPS More informationQuantity required : 1 |
||||||
|
3 |
661903 PANEL DE EDGE More informationQuantity required : 1 |
||||||
|
4 |
Ampèremètre |
||||||
|
5 |
661889 - JAUGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/3/img/65403.jpg)
6 |
SCREW AUTOTARAUDEUSE (4. 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015911 More informationQuantity required : 1 |
||||||
|
7 |
645285 WARNING INDICATOR LIGHT G More informationQuantity required : 1 |
||||||
|
8 |
658529 - PORTE-OBJET More informationQuantity required : 1 |
||||||
|
9 |
658831 - PORTE-OBJET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/5/img/65425.jpg)
10 |
WASHER PLATE (4. 5X12X1) OEM PIAGGIO COMMON A LA RANGE-016670 More informationQuantity required : 1 |
||||||
|
11 |
661951 - CIRCLIPS More informationQuantity required : 1 |
