Vehicle Exploded View - PIAGGIO VU APE CALESSINO 200 Ape Calessino 2007-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

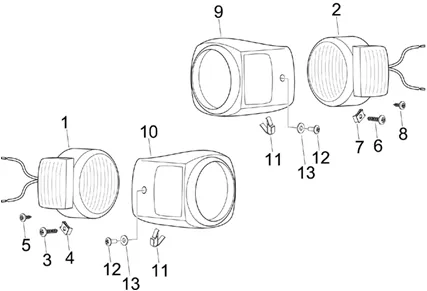

Installation électrique : 06.03 ECLAIRAGES AVANT - CLIGNOTANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/324/Ape_Calessino_2007-2012_06.03_20251008090542.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/4/4/4/img/119444.jpg)
1 |
LAMP UNIT/HEADLAMP/HEADLAMP RIGHT OEM PIAGGIO THREE-WHEELER APE CALESSINO 2007 > 2017, CLASSIC 2006 > 2017-632477R More informationQuantity required : 1 |
||||||
2 |
632478R HEADLAMP GAU. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/5/img/63855.jpg)
3 |
SCREW PARKER (4. 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-008455 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/4/img/72924.jpg)
4 |
NUT SHEET METAL (4. 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017408 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/2/img/65402.jpg)
5 |
SCREW AUTOFOREUSE (4, 2X9, 5) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015900 More informationQuantity required : 3 |
||||||
|
6 |
SCREW PARKER (4. 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-008455 More informationQuantity required : 1 |
||||||
|
7 |
NUT SHEET METAL (4. 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017408 More informationQuantity required : 1 |
||||||
|
8 |
SCREW AUTOFOREUSE (4, 2X9, 5) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015900 More informationQuantity required : 3 |
||||||
|
9 |
658500 - SUPPORT PROJECTEUR GAUCHE More informationQuantity required : 1 |
||||||
|
10 |
658501 - SUPPORT PROJECTEUR DROIT More informationQuantity required : 1 |
||||||
|
11 |
658810 - RESSORT More informationQuantity required : 4 |
||||||
|
12 |
008246 SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/5/img/63775.jpg)
13 |
WASHER PLATE (4. 3X8X0. 5) OEM PIAGGIO COMMON A LA RANGE-003054 More informationQuantity required : 2 |
