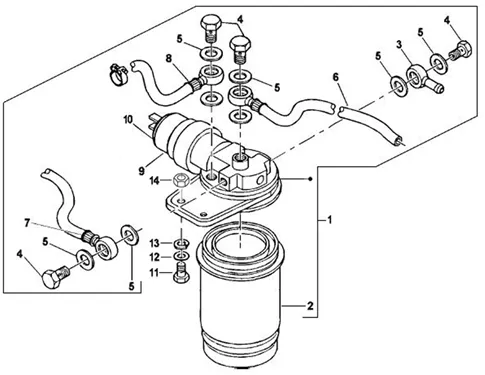

Vehicle Exploded View - PIAGGIO VU APE CALESSINO 200 Ape Calessino 2007-2012 PIAGGIO VU

Parties plastiques-carrosseries : 02.53 INSTALATION DE L'ALIMENTATION
Instalation de l'alimentation
Search
613199 - DISPOSITIVO

1
P2R reference P2R reference 123436
Maker reference Maker reference 613199

613199 - DISPOSITIVO

More information

Quantity required : 2

FILTER A THROTTLE-OIL OEM PIAGGIO THREE-WHEELER APE CLASSIC 2006 >, CALESSINO 2007 > 2012, TM 703 DIESEL 1997 > 2012, PORTER 1400CC 1998 > 2005-493290

2
P2R reference P2R reference 120381
Maker reference Maker reference 493290

FILTER A THROTTLE-OIL OEM PIAGGIO THREE-WHEELER APE CLASSIC 2006 >, CALESSINO 2007 > 2012, TM 703 DIESEL 1997 > 2012, PORTER 1400CC 1998 > 2005-493290

More information

Quantity required : 1

568185 - RACCORD

3
P2R reference P2R reference 113128
Maker reference Maker reference 568185

568185 FITTING

More information

Quantity required : 1

493054 - BOULON M 10

4
P2R reference P2R reference 114120
Maker reference Maker reference 493054

493054 - BOULON M 10

More information

Quantity required : 6

GASKET CUIVRE ALIMENTATION OEM PIAGGIO THREE-WHEELER APE CALESSINO 2007 > 2012/CLASSIC 2006 > 2013-493123

5
P2R reference P2R reference 109958
Maker reference Maker reference 493123

GASKET CUIVRE ALIMENTATION OEM PIAGGIO THREE-WHEELER APE CALESSINO 2007 > 2012/CLASSIC 2006 > 2013-493123

More information

Quantity required : 12

613198 - TUYAU CARB.

6
P2R reference P2R reference 119724
Maker reference Maker reference 613198

613198 HOSE CARB.

More information

Quantity required : 1

614939 - TUYAU

7
P2R reference P2R reference 116688
Maker reference Maker reference 614939

614939 HOSE

More information

Quantity required : 1

614938 - TUYAU

8
P2R reference P2R reference 118468
Maker reference Maker reference 614938

614938 HOSE

More information

Quantity required : 1

568721 - RONDELLE

9
P2R reference P2R reference 109869
Maker reference Maker reference 568721

568721 WASHER

More information

Quantity required : 1

493542 - ELETTROMAGN**

10
P2R reference P2R reference 123182
Maker reference Maker reference 493542

493542 - ELETTROMAGN**

More information

Quantity required : 1

632247 - VIS

11
P2R reference P2R reference 110249
Maker reference Maker reference 632247

632247 SCREW

More information

Quantity required : 2

WASHER PLATE (10, 4X18X2) OEM PIAGGIO COMMON A LA RANGE-016626

12
P2R reference P2R reference 65423
Maker reference Maker reference 0166265

WASHER PLATE (10, 4X18X2) OEM PIAGGIO COMMON A LA RANGE-016626

More information

Quantity required : 2

WASHER GROWER (10. 6X17. 6X5) OEM PIAGGIO COMMON A LA RANGE-016410

13
P2R reference P2R reference 65419
Maker reference Maker reference 0164105

WASHER GROWER (10. 6X17. 6X5) OEM PIAGGIO COMMON A LA RANGE-016410

More information

Quantity required : 2

NUT (10 EP 5. 9) OEM PIAGGIO COMMON A LA RANGE-020210

14
P2R reference P2R reference 65477
Maker reference Maker reference 0202105

NUT (10 EP 5. 9) OEM PIAGGIO COMMON A LA RANGE-020210

More information

Quantity required : 2
