Vehicle Exploded View - PIAGGIO VU APE CALESSINO 200 Ape Calessino 2007-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

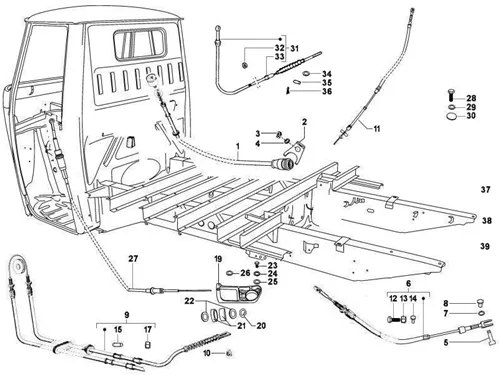

Transmisisons : 05.03 TRANSMISSIONS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/324/Ape_Calessino_2007-2012_05.03_20251008090459.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/5/8/5/img/118585.jpg)
1 |
CABLE/CONTROL/TRANSMISSION DE INSTRUMENT CLUSTER OEM PIAGGIO THREE-WHEELER APE CALESSINO 2007 > 2012-661769 More informationQuantity required : 1 |
||||||
2 |
569697 BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
3 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
4 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 1 |
||||||
|
5 |
227810-PIVOT More informationQuantity required : 1 |
||||||
|
6 |
661767 - CABLE MARCHE AR More informationQuantity required : 1 |
||||||
|
7 |
003055-WASHER More informationQuantity required : 1 |
||||||
|
8 |
604717 POMELLO More informationQuantity required : 1 |
||||||
|
9 |
567719 CABLE More informationQuantity required : 1 |
||||||
|
10 |
604502 CAP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/5/7/1/img/116571.jpg)
11 |
CABLE/CONTROL/TRANSMISSION CLUTCH OEM PIAGGIO THREE-WHEELER APE CALESSINO 2007 > 2012-658762 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/7/6/img/65676.jpg)
12 |
SCREW TENDEUR (M5) OEM PIAGGIO COMMON A LA RANGE-090527 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/0/img/65460.jpg)
13 |
NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105 More informationQuantity required : 2 |
||||||
|
14 |
119278 EMBOUT More informationQuantity required : 1 |
||||||
|
17 |
NUT (M8) OEM PIAGGIO COMMON A LA RANGE-B011531 More informationQuantity required : 4 |
||||||
|
17 |
NUT (M8) OEM PIAGGIO COMMON A LA RANGE-B011531 More informationQuantity required : 4 |
||||||
|
19 |
568991 BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/9/9/img/63799.jpg)
20 |
CLIPS/CIRCLIPS OEM PIAGGIO COMMON A LA RANGE-005970 More informationQuantity required : 1 |
||||||
|
21 |
197100 RUBBER MOUNT More informationQuantity required : 1 |
||||||
|
22 |
197101-WASHER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/3/img/65643.jpg)
23 |
SCREW TH (6X25) OEM PIAGGIO COMMON A LA RANGE-031092 More informationQuantity required : 3 |
||||||
|
24 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
25 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 3 |
||||||
|
26 |
CLIPS/CIRCLIPS OEM PIAGGIO COMMON A LA RANGE-005970 More informationQuantity required : 1 |
||||||
|
27 |
661768 TRANSMISSION SPEED More informationQuantity required : 1 |
||||||
|
28 |
198662 BULLONE More informationQuantity required : 1 |
||||||
|
29 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/7/6/6/img/109766.jpg)
30 |
PASTILLE FRAME OEM PIAGGIO THREE-WHEELER APE CALESSINO 2007 > 2012, CLASSIC 2006 > 2017, TM 703 2005 > 2012 DIESEL-221280 More informationQuantity required : 1 |
||||||
|
31 |
661765 CABLE THROTTLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/7/4/img/65474.jpg)
32 |
NUT M6 OEM PIAGGIO COMMON A LA RANGE-020206 More informationQuantity required : 2 |
||||||
|
33 |
119278 EMBOUT More informationQuantity required : 1 |
||||||
|
34 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 1 |
||||||
|
35 |
AXE POULIE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/3/img/65353.jpg)
36 |
GOUPILLE (1. 2X12) OEM PIAGGIO COMMON A LA RANGE-012761 More informationQuantity required : 1 |
