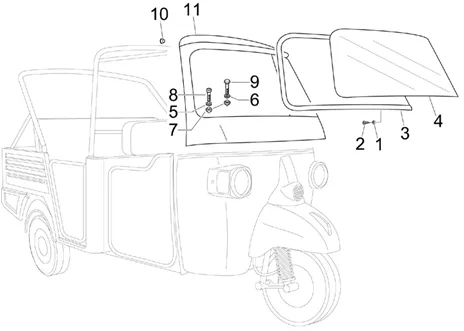

Parties plastiques-carrosseries : 02.27 PARE-BRISE - GLACES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/324/Ape_Calessino_2007-2012_02.27_20251008090230.PNG)
1 |
658887 WASHER More informationQuantity required : 9 |
||||||
|
2 |
658888 - VIS More informationQuantity required : 9 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/3/8/6/img/119386.jpg)
3 |
GASKET OF WINDSCREEN OEM PIAGGIO THREE-WHEELER CALESSINO 2007 >, CLASSIC 2006 >, P501, P601, P400 1978 > 1983-109012 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/8/1/6/img/122816.jpg)
4 |
WINDSCREEN OEM PIAGGIO THREE-WHEELER APE CALESSINO 2007 >, CLASSIC 2006 >-587963 More informationQuantity required : 1 |
||||||
|
5 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
6 |
WASHER GROWER (5, 1X8, 5X1, 5) OEM PIAGGIO COMMON A LA RANGE-016405 More informationQuantity required : 9 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/0/img/65460.jpg)
7 |
NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105 More informationQuantity required : 13 |
||||||
|
8 |
000702-SCREW S00070200 More informationQuantity required : 4 |
||||||
|
9 |
604606 SCREW More informationQuantity required : 9 |
||||||
|
10 |
CAPUCHON |
||||||
|
11 |
661791 - CABINE TM50 FL2 More informationQuantity required : 1 |
