Vehicle Exploded View - VESPA VESPA GTS 310 E5+ - Super-Super Sport 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

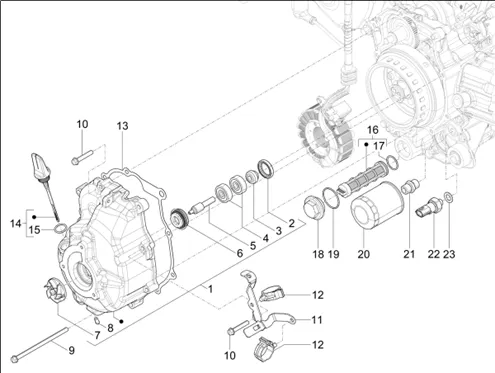

Moteur : 01.23 COUVERCLE VOLANT MAGNETIQUE - FILTRE À HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1234/Vespa_GTS_310_E5_-_Super-Super_Sport_2024_EMEA_01.23.png)
1 |
1A0279235 - CARTER DU VOLANT COMPLET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/0/1/img/68801.jpg)
2 |
GASKET OF WATER PUMP (20X30X5) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-82897R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/3/0/img/69230.jpg)
3 |
ENTRAINEUR OF PUMP A WATER OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-842389 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/7/9/img/68679.jpg)
4 |
BEARING (28X8X9) SHAFT OF WATER PUMP OEM PIAGGIO 125-300 BEVERLY, VESPA GTS, 125 X9, X8, X10/APRILIA 125-250 SCARABEO, SPORT-CITY, ATLANTIC-82755R More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/2/7/img/69327.jpg)
5 |
SHAFT OF PUMP A WATER WITH ROULEMENTS OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-8447595 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/7/6/img/68876.jpg)
6 |
GASKET WATER PUMP OEM PIAGGIO 125-250-300-400-500 MP3, 125-250 X7, X8, X-EVO, BEVERLY, X10/GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX-82991R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/2/6/img/69326.jpg)
7 |
TURBINE OF PUMP A WATER OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-844730 More informationQuantity required : 1 |
||||||
|
8 |
FITTING ON CASING OEM PIAGGIO 350-400 BEVERLY, MP3 2017 >-849154 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/3/2/img/72732.jpg)
9 |
SCREW FLANGE TH (6X112. 5) OEM PIAGGIO COMMON A LA RANGE-B016807 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
10 |
SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838 More informationQuantity required : 9 |
||||||
|
11 |
1A0183125 - ETRIER More informationQuantity required : 1 |
||||||
|
12 |
CM006914-SPRING More informationQuantity required : 2 |
||||||
|
13 |
1A025143 - JOINT COUVERCLE VOLANT More informationQuantity required : 1 |
||||||
|
14 |
1A027341 - COMPLETE OIL DIPSTICK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/2/8/0/img/158280.jpg)
15 |
O-RING OEM PIAGGIO COMMON A LA RANGE-1A009397 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/9/3/img/69293.jpg)
16 |
CREPINE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-843568 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/9/1/img/66191.jpg)
17 |
GASKET OF CREPINE D'HUILE OEM PIAGGIO 125-250-300 X7, X8, X-EVO, X9, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA 50-125 SR-MOTARD, SPORT-CITY/GILERA 500 FUOCO-288474 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/8/9/img/68589.jpg)
18 |
COVER DE CREPINE D'HUILE OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER-826165 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/9/img/66149.jpg)
19 |
GASKET CAP DE VIDANGE (Ø31, 47X1, 78MM) OEM PIAGGIO 125-250-400-500 MP3, BEVERLY, X-EVO, X8, X9, 125 FLY, 125-500 X10/GILERA 125-500 NEXUS/APRILIA 125-400-500 ATLANTIC, SCARABEO-285536 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/0/6/4/9/img/210649.jpg)
20 |
OIL FILTER MAXI SCOOTER OEM PIAGGIO 125-250-300 X7, X8, X-EVO, X9, X10, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA ATLANTIC, SR MAX/GILERA NEXUS-1A022356 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/5/1/img/69151.jpg)
21 |
SCREW SPECIALE OIL FILTER OEM PIAGGIO 300 COMMON A LA RANGE-840507 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/6/1/0/img/174610.jpg)
22 |
SENSOR OF PRESSION OIL OEM PIAGGIO 400-500-530 MP3, BERVERLY 2021 >/MOTO GUZZI V100-1A016409 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/3/8/3/img/151383.jpg)
23 |
WASHER PLATE (10, 5X17X1, 5) OEM PIAGGIO COMMON A LA RANGE-1A011500 More informationQuantity required : 1 |
