Vehicle Exploded View - VESPA VESPA GTS 310 E5+ - Super-Super Sport 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

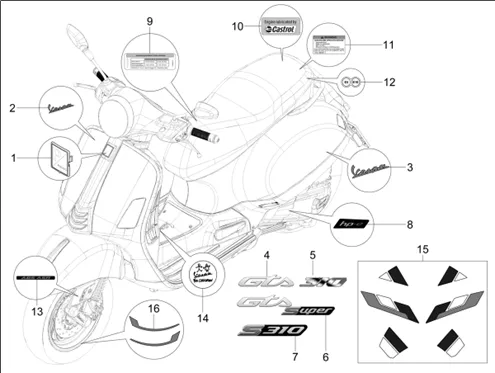

Châssis - parties plastiques - carrosseries : 02.38 MONOGRAMMES - DECORATIONS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1234/Vespa_GTS_310_E5_-_Super-Super_Sport_2024_EMEA_02.38.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/2/9/img/67129.jpg)
1 |
STICKER/STICKER/GRAPHIC OEM PIAGGIO 125 VESPA PX 1980 > 1998/300 GTV 2017 >-576464 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/0/9/9/3/img/200993.JPG)
2 |
STICKER/STICKER/GRAPHIC " VESPA " OEM PIAGGIO GTS 125/300 2019 >-2H004257 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/1/3/1/img/89131.jpg)
3 |
STICKER/STICKER/GRAPHIC " VESPA " OEM PIAGGIO COMMON A LA RANGE SCOOTER 50-125 VESPA-656220 More informationQuantity required : 1 |
||||||
4 |
2H005284-" GTS " LABEL More informationQuantity required : 1 |
||||||
|
5 |
2H006984 - VESPA GTS "310" LABEL More informationQuantity required : 1 |
||||||
|
6 |
STICKER/STICKER/GRAPHIC " GTS SUPER " OEM PIAGGIO GTS 125/300 2019 >-2H005285000A1 More informationQuantity required : 1 |
||||||
|
7 |
2H006985-VESPA GTS SUPER " S310 " LABEL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/2/7/8/8/img/172788.jpg)
8 |
STICKER/STICKER/GRAPHIC HPE OEM PIAGGIO 300 GTS VESPA 2018 >-2H003939 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/3/9/6/img/142396.jpg)
9 |
STICKER/STICKER/GRAPHIC PRESSION TYRE OEM PIAGGIO 125-300 GTS 2016 >-1G000161 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/2/6/7/img/174267.jpg)
10 |
STICKER/STICKER/GRAPHIC CASTROL ORGIINE PIAGGIO COMMON A LA RANGE-2H002046 More informationQuantity required : 1 |
||||||
|
11 |
1B009257-DECAL FUEL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/1/0/3/img/156103.jpg)
12 |
STICKER/STICKER/GRAPHIC (E5-E10) OEM PIAGGIO COMMON A LA RANGE-2B0059385 More informationQuantity required : 1 |
||||||
|
13 |
2H005305-" ABS-ASR " STICKER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/8/1/4/img/75814.jpg)
14 |
STICKER/STICKER/GRAPHIC (VESPA FOR CHILDREN) OEM PIAGGIO COMMON A LA RANGE VESPA-1B001078 More informationQuantity required : 1 |
||||||
|
15 |
2H006686-VESPA GTS SUPERSPORT DECALS KIT More informationQuantity required : 1 |
||||||
|
16 |
|
