Vehicle Exploded View - VESPA VESPA GTS 310 E5+ - Super-Super Sport 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

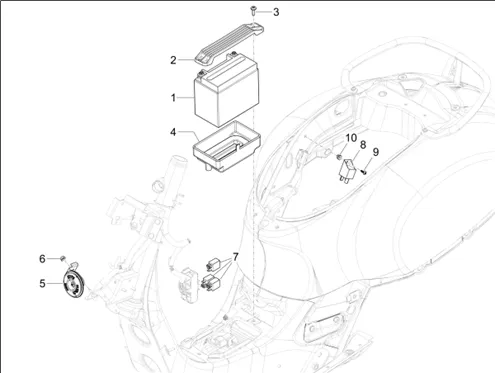

Circuit électrique : 06.05 RELAIS - BATTERIE - AVERTISSEUR SONORE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1234/Vespa_GTS_310_E5_-_Super-Super_Sport_2024_EMEA_06.05.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/0/7/img/67807.jpg)
1 |
BATTERY 12V 12AH YTX14-BS OEM PIAGGIO WITHOUT SERVICE SUPPLIED WITH PACK ACIDE (LG151XL87XH147)-638733 More informationQuantity required : 1 |
||||||
2 |
1B0121704 - COMPLETE BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/7/img/73367.jpg)
3 |
SCREW TORX (6X22) HEAD BOMBEE OEM PIAGGIO COMMON A LA RANGE-CM179302 More informationQuantity required : 2 |
||||||
|
4 |
1B012075 - BATTERY HOUSING More informationQuantity required : 1 |
||||||
|
5 |
CM071822-AVERTISSEUR ACOUSTIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/0/9/6/img/149096.jpg)
6 |
NUT FLANGE (M6) OEM PIAGGIO COMMON A LA RANGE-241936 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/6/img/139406.jpg)
7 |
RELAIS 12V 30A WITH RESISTANCE OEM PIAGGIO 125-350-500 MP3, X10, 125-250-300 VESPA GTS, PORTER/APRILIA 1000 RSV-2, TUONO V2, FALCO, CAPONORD-1D001636 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/6/3/img/67263.JPG)
8 |
RELAIS DE STARTER MOTOR OEM PIAGGIO 300-350-400-500 MP3, BEVERLY, 50-125 LIBERTY CORPORATE/APRILIA 1000-1100 RSV-4, TUONO V4, 900 DORSODURO, SHIVER/GILERA 500 NEXUS, FUOCO-582690 More informationQuantity required : 1 |
||||||
|
8 |
RELAIS DE STARTER MOTOR OEM PIAGGIO 300-350-400-500 MP3, BEVERLY, 50-125 LIBERTY CORPORATE/APRILIA 1000-1100 RSV-4, TUONO V4, 900 DORSODURO, SHIVER/GILERA 500 NEXUS, FUOCO-582690 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/7/img/73357.jpg)
9 |
SCREW TORX (4, 2X16) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178601 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/1/9/img/109019.jpg)
10 |
AGRAPHE/CHEVILLE A EXPENSION OEM PIAGGIO COMMON A LA RANGE-157716 More informationQuantity required : 1 |
