Vehicle Exploded View - VESPA VESPA GTS 310 E5+ - Super-Super Sport 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

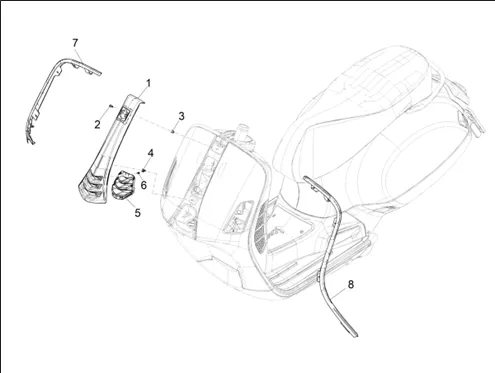

Châssis - parties plastiques - carrosseries : 02.26 TABLIER AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1234/Vespa_GTS_310_E5_-_Super-Super_Sport_2024_EMEA_02.26.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/0/7/7/7/img/210777.jpg)
1 |
COVER COLONNE DE STEERING OEM PIAGGIO 125-300 GTS 2022 > VERSION SUPER SPORT-1B010622 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/0/8/5/1/img/200851.jpg)
1 |
COVER STEERING OEM PIAGGIO 125-300 GTS VESPA GTS 2022 > UNPAINTED-1B009434 More informationQuantity required : 1 |
||||||
1 |
COVER STEERING OEM PIAGGIO 125-300 GTS VESPA GTS 2022 > VERT LATTEMENTA-1B009434000VK More informationQuantity required : 1 |
||||||
|
1 |
COVER STEERING OEM PIAGGIO 125-300 GTS VESPA GTS 2022 > BEIGE Q01-1B009434000Q01 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/0/8/5/0/img/200850.jpg)
1 |
COVER STEERING OEM PIAGGIO 125-300 GTS VESPA GTS 2022 > BLACK 98/A-1B009434000XN2 More informationQuantity required : 1 |
||||||
|
1 |
COVER STEERING OEM PIAGGIO 125-300 GTS VESPA GTS 2022 > RED 894-1B009434000R7 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/0/8/4/7/img/200847.jpg)
1 |
COVER STEERING OEM PIAGGIO 125-300 GTS VESPA GTS 2022 > WHITE B04-1B009434000B04 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/8/8/img/96288.jpg)
2 |
SCREW TORX (5X22. 6) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM179101 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/1/9/img/109019.jpg)
3 |
AGRAPHE/CHEVILLE A EXPENSION OEM PIAGGIO COMMON A LA RANGE-157716 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/4/img/73404.jpg)
4 |
AGRAPHE OEM PIAGGIO COMMON A TOUTE LA RANGE-D9004468091 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/0/8/5/3/img/200853.jpg)
5 |
GRILLE DE PROTECTOR DE COLONNE DE STEERING BLANCHE OEM PIAGGIO 125-300 GTS 2022 >-1B009431000A15 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/0/8/5/2/img/200852.jpg)
5 |
GRILLE DE PROTECTOR DE COLONNE DE STEERING BLACK POLIE OEM PIAGGIO 125-300 GTS 2022 >-1B009431000K1 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/4/img/63854.jpg)
6 |
SCREW PARKER CRUCIFORME (3, 5X9, 5) OEM PIAGGIO COMMON A LA RANGE-008432 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/0/8/5/6/img/200856.jpg)
7 |
BORDURE/JONC DE LEG SHIELD FRONT RIGHT BLACK OEM PIAGGIO 125-250-300 VESPA GTS 2022 >-1B00964500090 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/0/8/5/7/img/200857.jpg)
7 |
BORDURE/JONC DE LEG SHIELD FRONT RIGHT CHROME OEM PIAGGIO 125-250-300 VESPA GTS 2022 >-1B009645000K1 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/0/8/5/9/img/200859.jpg)
8 |
BORDURE/JONC DE LEG SHIELD FRONT LEFT BLACK OEM PIAGGIO 125-250-300 VESPA GTS 2022 >-1B00964400090 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/0/8/6/0/img/200860.jpg)
8 |
BORDURE/JONC DE LEG SHIELD FRONT LEFT CHROME OEM PIAGGIO 125-250-300 VESPA GTS 2022 >-1B009644000K1 More informationQuantity required : 1 |
