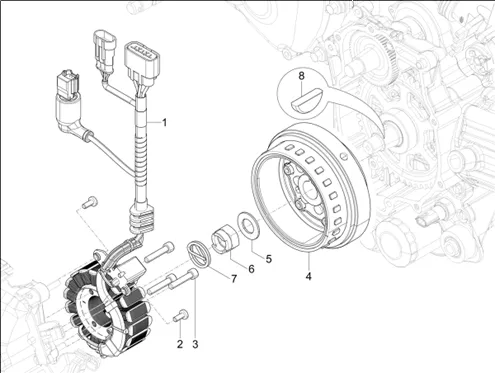

Moteur : 01.21 VOLANT MAGNETIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1234/Vespa_GTS_310_E5_-_Super-Super_Sport_2024_EMEA_01.21.png)
1 |
1A025339-STATOR COMPLETE More informationQuantity required : 1 |
||||||
|
1 |
1A026108 - STATOR COMPLET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/3/img/65383.jpg)
2 |
SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A TOUTE LA RANGE-015585 More informationQuantity required : 2 |
||||||
|
3 |
SCREW BTR (6X30) OEM PIAGGIO COMMON A LA RANGE-122637 More informationQuantity required : 3 |
||||||
|
4 |
1A026754-ROTOR WITH WHEEL LIBRE More informationQuantity required : 1 |
||||||
|
4 |
1A026755-ROTOR WITH WHEEL LIBRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/2/9/img/69229.jpg)
5 |
WASHER PLATE (16X30X2) OEM PIAGGIO COMMON A LA RANGE-842385 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/5/3/img/68853.jpg)
6 |
NUT ROTOR IGNITION OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 125-250-300-82952R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/3/1/img/69231.jpg)
7 |
SPRING ENTRAINEMENT WATER PUMP OEM PIAGGIO COMMON A LA RANGE MAXISCOOTEUR 125-250-300-842390 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/7/4/img/63674.jpg)
8 |
CLAVETTE IGNITION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-000097 More informationQuantity required : 1 |
