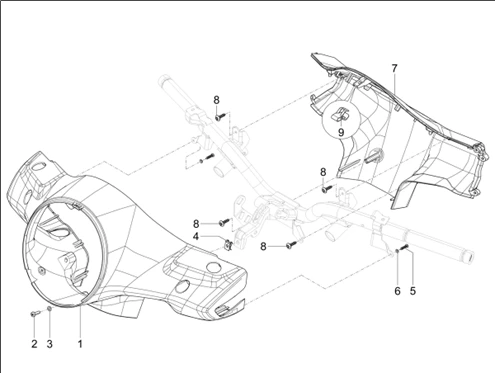

Guidon/direction : 03.01 COUVERTURES GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1234/Vespa_GTS_310_E5_-_Super-Super_Sport_2024_EMEA_03.01.png)
1 |
1B011175-COQUE HANDLEBAR FRONT BRUTE More informationQuantity required : 1 |
||||||
|
1 |
1B011175000XN2-COVER-HANDLEBAR FRONT More informationQuantity required : 1 |
||||||
|
1 |
1B011175000VK-COVER-HANDLEBAR FRONT More informationQuantity required : 1 |
||||||
|
1 |
1B011175000Q01-COVER-HANDLEBAR FRONT More informationQuantity required : 1 |
||||||
|
1 |
1B011175000B04-COVER-HANDLEBAR FRONT More informationQuantity required : 1 |
||||||
|
1 |
1B011175000R7-COVER-HANDLEBAR FRONT More informationQuantity required : 1 |
||||||
|
1 |
1B011175000A19-COVER-HANDLEBAR FRONT More informationQuantity required : 1 |
||||||
|
1 |
1B011175000HQ-COVER-HANDLEBAR FRONT More informationQuantity required : 1 |
||||||
|
1 |
1B011175000NV-COVER-HANDLEBAR FRONT More informationQuantity required : 1 |
||||||
|
1 |
1B011175000V03-COVER-HANDLEBAR FRONT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/8/img/65408.jpg)
2 |
SCREW CRUCIFORME (4X12) OEM PIAGGIO COMMON A LA RANGE-015996 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/5/img/63775.jpg)
3 |
WASHER PLATE (4. 3X8X0. 5) OEM PIAGGIO COMMON A LA RANGE-003054 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/7/img/71177.jpg)
4 |
NUT SHEET METAL (M4) OEM PIAGGIO COMMON A LA RANGE-AP8102381 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/7/9/8/img/77798.jpg)
5 |
SCREW CRUCIFORME (3. 5X16) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-294678 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/4/img/63774.jpg)
6 |
WASHER PLATE (3. 3X6. 6X0. 5) OEM PIAGGIO COMMON A LA RANGE-003053 More informationQuantity required : 2 |
||||||
|
6 |
WASHER PLATE (3. 3X6. 6X0. 5) OEM PIAGGIO COMMON A LA RANGE-003053 More informationQuantity required : 2 |
||||||
|
7 |
1B011176000Q01-REAR HANDLEBAR COVER More informationQuantity required : 1 |
||||||
|
7 |
1B011176000VK-REAR HANDLEBAR COVER More informationQuantity required : 1 |
||||||
|
7 |
1B011176000A19-REAR HANDLEBAR COVER More informationQuantity required : 1 |
||||||
|
7 |
1B011176000HQ-REAR HANDLEBAR COVER More informationQuantity required : 1 |
||||||
|
7 |
1B011176000NV-REAR HANDLEBAR COVER More informationQuantity required : 1 |
||||||
|
7 |
1B011176000V03-REAR HANDLEBAR COVER More informationQuantity required : 1 |
||||||
|
7 |
1B011176000B04-REAR HANDLEBAR COVER More informationQuantity required : 1 |
||||||
|
7 |
1B011176000R7-REAR HANDLEBAR COVER More informationQuantity required : 1 |
||||||
|
7 |
1B011176000XN2-REAR HANDLEBAR COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/7/2/img/73372.jpg)
8 |
SCREW TORX (4X16) TARAUD FAIRING OEM PIAGGIO COMMON A LA RANGE-CM180701 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/4/img/73404.jpg)
9 |
AGRAPHE OEM PIAGGIO COMMON A TOUTE LA RANGE-D9004468091 More informationQuantity required : 1 |
All the exploded views of this vehicle
-
