Vehicle Exploded View - VESPA VESPA GTS 310 E5+ - Super-Super Sport 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

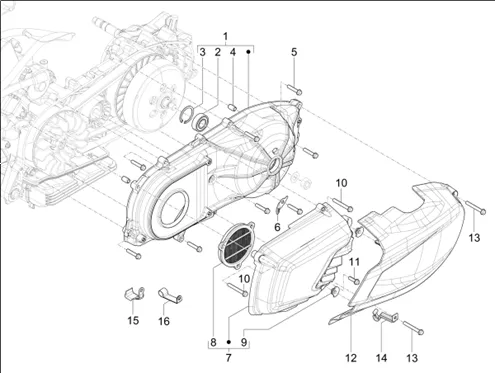

Moteur : 01.15 COUVERCLE CARTER - REFOIDISSEMENT CARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1234/Vespa_GTS_310_E5_-_Super-Super_Sport_2024_EMEA_01.15.png)
1 |
1A0248075-TRANSMISSION COVER WITH I. P. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/7/1/img/66571.jpg)
2 |
BEARING (15X35X11) OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 125-250-300-4789853 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/3/img/63823.jpg)
3 |
CIRCLIPS (D = 38) OEM PIAGGIO COMMON A TOUTE LA RANGE-006635 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
4 |
BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/5/img/72725.jpg)
5 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-B016792 More informationQuantity required : 8 |
|||||||||
|
6 |
1A027023-BREATHER MANIFOLD BRACKET More informationQuantity required : 1 |
|||||||||
|
7 |
|
|||||||||
|
8 |
1A026693-FILTER FOR TRANSMISSION COVER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/7/8/img/70378.jpg)
9 |
BUFFER/INSERT ARRET MOUNTING COVER TRANMISSION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-871458 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/6/9/img/72769.jpg)
10 |
SCREW FLANGE TH (6X45) OEM PIAGGIO COMMON A LA RANGE-B017632 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
11 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-018639 More informationQuantity required : 1 |
|||||||||
|
12 |
COVER INSONORISANT OEM VESPA 310 E5 + SUPER-SUPERSPORT 2025 >-1A028773 More informationQuantity required : 1 |
|||||||||
|
12 |
1A026806 - COMPLETE SOUNDPROOFING PROTECTION More informationQuantity required : 1 |
|||||||||
|
13 |
SCREW FLANGE TH (6X45) OEM PIAGGIO COMMON A LA RANGE-B017632 More informationQuantity required : 2 |
|||||||||
|
14 |
1C007738 - COLLIER More informationQuantity required : 1 |
|||||||||
|
15 |
1C007736 - COLLIER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/7/8/img/67078.jpg)
16 |
CLAMP OEM PIAGGIO COMMON A LA RANGE-564761 More informationQuantity required : 1 |
|||||||||
