Vehicle Exploded View - VESPA VESPA 946 125 E5+ 12° Anniversary 2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

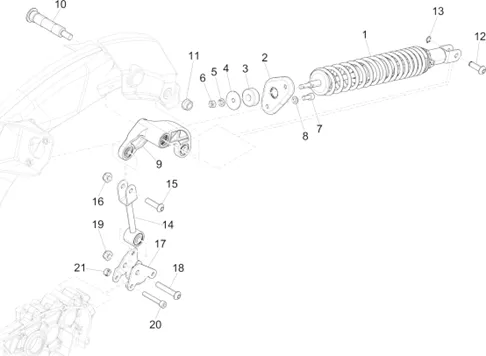

Suspensions - roues : 04.10 SUSPENSION ARRIÈRE - AMORTISSEUR/S
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1348/Vespa_946_125_E5_12_Anniversary_2025_EMEA_04.10.png)
1 |
668599-SHOCK ABSORBER AR. More informationQuantity required : 1 |
||||||
|
2 |
668934-BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/2/img/65782.jpg)
3 |
BUFFER UPPER REAR SHOCK ABSORBER OEM PIAGGIO COMMON A LA SCOOTER 50 CC ET MAXI SCOOTER 125-250 CC-178150 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/7/img/66057.jpg)
4 |
WASHER PLATE (8X37X1, 5) OEM PIAGGIO COMMON A LA RANGE-267038 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
5 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/5/9/8/img/65598.jpg)
6 |
NUT (M8) OEM PIAGGIO COMMON A TOUTE LA RANGE-021108 More informationQuantity required : 1 |
||||||
|
7 |
1C006162 SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
8 |
WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047 More informationQuantity required : 2 |
||||||
|
9 |
668614-BRACKET DE SUSPENSION More informationQuantity required : 1 |
||||||
|
10 |
668662-PIVOT More informationQuantity required : 1 |
||||||
|
11 |
267555 NUT More informationQuantity required : 1 |
||||||
|
12 |
1C000225-SPECIAL CLE TORX SCREW? T? TE OVALE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/9/img/63809.jpg)
13 |
CLIPS/CIRCLIPS OEM PIAGGIO COMMON A LA RANGE-0064096 More informationQuantity required : 1 |
||||||
|
14 |
668656-SHOCK ABSORBER More informationQuantity required : 1 |
||||||
|
15 |
669304-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
16 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 1 |
||||||
|
17 |
1C000259-PATTES More informationQuantity required : 1 |
||||||
|
18 |
669305-SCREW More informationQuantity required : 1 |
||||||
|
19 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 1 |
||||||
|
20 |
872997-SCREW M8X55 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/5/img/65455.jpg)
21 |
NUT (M8) OEM PIAGGIO COMMON A TOUTE LA RANGE-020008 More informationQuantity required : 2 |
