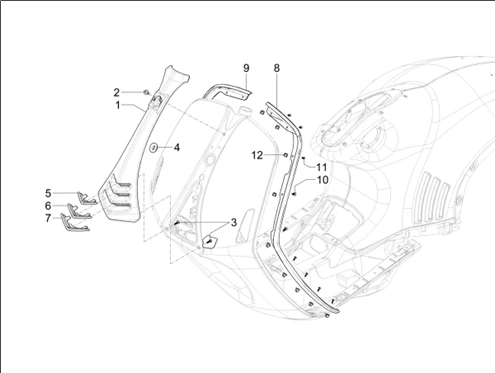

Vehicle Exploded View - VESPA VESPA 946 125 E5+ 12° Anniversary 2025 (EMEA) VESPA

Châssis - parties plastiques - carrosseries : 02.26 TABLIER AVANT
Tablier avant
Search
67615440D24 - CACHE-DIRECTION

1
P2R reference P2R reference 226721
Maker reference Maker reference 67615440D24

67615440D24-COVER-STEERING

More information

Quantity required : 1

676154 - CACHE DIRECTION

1
P2R reference P2R reference 92101
Maker reference Maker reference 676154

676154-COVER STEERING

More information

Quantity required : 1

SCREW TORX (6X16) OEM PIAGGIO COMMON A LA RANGE-CM179301

2
P2R reference P2R reference 73366
Maker reference Maker reference CM179301

SCREW TORX (6X16) OEM PIAGGIO COMMON A LA RANGE-CM179301

More information

Quantity required : 1

SCREW TORX (4X16) TARAUD FAIRING OEM PIAGGIO COMMON A LA RANGE-CM180701

3
P2R reference P2R reference 73372
Maker reference Maker reference CM180701

SCREW TORX (4X16) TARAUD FAIRING OEM PIAGGIO COMMON A LA RANGE-CM180701

More information

Quantity required : 2

BUFFER/SILENCBLOC DE FAIRING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-1B000888

4
P2R reference P2R reference 65850
Maker reference Maker reference 1B000888

BUFFER/SILENCBLOC DE FAIRING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-1B000888

More information

Quantity required : 1

1B011371400D24 - ORNEMENT SUPERIEUR

5
P2R reference P2R reference 226722
Maker reference Maker reference 1B011371400D24

1B011371400D24-ORNEMENT UPPER

More information

Quantity required : 1

1B011372400D24 - ORNEMENT CENTRAL

6
P2R reference P2R reference 226723
Maker reference Maker reference 1B011372400D24

1B011372400D24-ORNEMENT CENTRAL

More information

Quantity required : 1

1B011373400D24 - ORNEMENT INFERIEUR

7
P2R reference P2R reference 226724
Maker reference Maker reference 1B011373400D24

1B011373400D24-ORNEMENT LOWER

More information

Quantity required : 1

1B011374400D24 - CADRE ESTHETIQUE G.

8
P2R reference P2R reference 226725
Maker reference Maker reference 1B011374400D24

1B011374400D24-CADRE ESTHETIQUE G.

More information

Quantity required : 1

1B011375400D24 - CADRE TABLIER D.

9
P2R reference P2R reference 226726
Maker reference Maker reference 1B011375400D24

1B011375400D24-CADRE LEG SHIELD D.

More information

Quantity required : 1

SCREW TORX (4, 2X13) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178603

10
P2R reference P2R reference 73358
Maker reference Maker reference CM178603

SCREW TORX (4, 2X13) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178603

More information

Quantity required : 4

SCREW CRUCIFORME (3, 5X11) AUTOTARAUDEUSE OEM PIAGGIO COMMON A TOUTE LA RANGE-296141

11
P2R reference P2R reference 195738
Maker reference Maker reference 296141

SCREW CRUCIFORME (3, 5X11) AUTOTARAUDEUSE OEM PIAGGIO COMMON A TOUTE LA RANGE-296141

More information

Quantity required : 14

AGRAPHE/CHEVILLE A EXPENSION OEM PIAGGIO COMMON A LA RANGE-157716

12
P2R reference P2R reference 109019
Maker reference Maker reference 157716

AGRAPHE/CHEVILLE A EXPENSION OEM PIAGGIO COMMON A LA RANGE-157716

More information

Quantity required : 18
