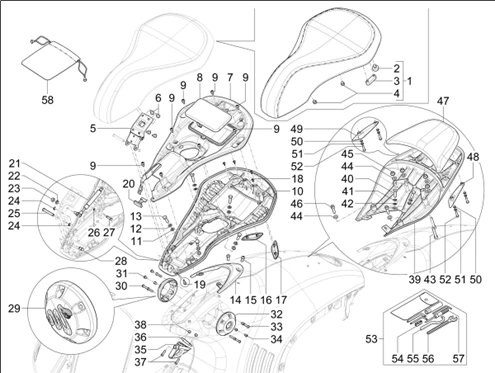

Vehicle Exploded View - VESPA VESPA 946 125 E5+ 12° Anniversary 2025 (EMEA)

	P2R reference	226747
	Maker reference	1B012490

1B012490-COMPLETE SADDLE

	P2R reference	67157
	Maker reference	577492

BUFFER DE SEAT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-577492

	P2R reference	66292
	Maker reference	296456

BUFFER SEAT OEM PIAGGIO COMMIN A LA RANGE-296456

	P2R reference	84838
	Maker reference	623504

623504-RUBBER MOUNT

	P2R reference	92070
	Maker reference	675930

675930-CHARNIERE SEAT

	P2R reference	73366
	Maker reference	CM179301

SCREW TORX (6X16) OEM PIAGGIO COMMON A LA RANGE-CM179301

	P2R reference	75810
	Maker reference	1B001062

1B001062-COVER

	P2R reference	75819
	Maker reference	1B001102

1B001102-COVER

	P2R reference	75408
	Maker reference	1B000068

SCREW TORX HEAD BOMBEE (6X14) OEM PAIGGIO COMMON A LA RANGE-1B000068

	P2R reference	226748
	Maker reference	1B011842000D24

1B011842000D24-BRACKET SEAT

	P2R reference	63779
	Maker reference	0030585

WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058

	P2R reference	65418
	Maker reference	0164085

WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408

	P2R reference
	Maker reference	00000031120

ARAND.PLANA MECANIZ. D12 DIN125 ZnB

	P2R reference	226749
	Maker reference	1B011364400D24

1B011364400D24-SEAT BRACKET FRAME

	P2R reference	75831
	Maker reference	1B001190

1B001190-BOLT

	P2R reference	226750
	Maker reference	1B011863400D24

1B011863400D24-PLUG

	P2R reference	226751
	Maker reference	1B011862400D24

1B011862400D24-PLUG

	P2R reference	66301
	Maker reference	297498

SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498

	P2R reference	75722
	Maker reference	1B000912

1B000912-PIVOT

	P2R reference	75753
	Maker reference	1B000980

BLOC ARRET SEAT OEM PIAGGIO 125 946 VESPA 2013 >-1B000980

	P2R reference	92036
	Maker reference	675604

675604-SPRING

	P2R reference	65418
	Maker reference	0164085

WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408

	P2R reference	65463
	Maker reference	0201085

NUT (M8X6, 5) OEM PIAGGIO COMMON A LA RANGE-020108

	P2R reference	109763
	Maker reference	620970

CLIPS/CIRCLIPS WINDSCREEN OEM MOTO GUZZI V100/ARTICULATION DE RIDELLE OEM PIAGGIO PORTER 2020 <-620970

	P2R reference	92071
	Maker reference	675932

675932-PIVOT

	P2R reference	63796
	Maker reference	0059645

CLIPS/CICLIPS OEM PIAGGIO COMMON A LA RANGE-005964

	P2R reference	92072
	Maker reference	675935

675935-PIVOT CONTROL SPECIALE 946

	P2R reference	92069
	Maker reference	675929

675929-PIVOT

	P2R reference	226752
	Maker reference	1B012581

1B012581-SIDE CAP RIGHT ASS. Y WITH FREIZE

	P2R reference	88389
	Maker reference	654507

SCREW BTR HEAD BOMBEE (6X25) OEM PIAGGIO COMMON A LA RANGE-654507

	P2R reference	75515
	Maker reference	1B000260

SCREW BTR HEAD BOMBEE (6X8) OEM PIAGGIO COMMON A A LA RANGE-1B000260

	P2R reference	226753
	Maker reference	1C007939

1C007939-LEFT SIDE AESTHETIC CAP

	P2R reference	88389
	Maker reference	654507

SCREW BTR HEAD BOMBEE (6X25) OEM PIAGGIO COMMON A LA RANGE-654507

	P2R reference	75515
	Maker reference	1B000260

SCREW BTR HEAD BOMBEE (6X8) OEM PIAGGIO COMMON A A LA RANGE-1B000260

	P2R reference	226754
	Maker reference	1B011346000D24

1B011346000D24-CROCHET DOOR-SACS

	P2R reference	75469
	Maker reference	1B000167

GASKET CROCHET DOOR SAC OEM PIAGGIO 125 VESPA 946 2013 >-1B000167

	P2R reference	69098
	Maker reference	834038

SCREW BTR HEAD BOMBEE (6X20) OEM PIAGGIO COMMON A LA RANGE-834038

	P2R reference	111436
	Maker reference	0121385

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-012138

	P2R reference	226755
	Maker reference	1B011846000D24

1B011846000D24-BRACKET DE SEAT PASSENGER

	P2R reference	65646
	Maker reference	0311195

SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119

	P2R reference	65418
	Maker reference	0164085

WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408

	P2R reference	63777
	Maker reference	0030565

WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056

	P2R reference	75886
	Maker reference	1B001477

SCREW BTR (8X50) OEM PIAGGIO COMMON A LA RANGE-1B001477

	P2R reference	63843
	Maker reference	0069785

WASHER SPRING (8X17) OEM PIAGGIO COMMON A LA RANGE-006978

	P2R reference	65379
	Maker reference	0153415

NUT FLANGE M8 MOUNTING EXHAUST OEM PIAGGIO COMMON ALA RANGE-015341

	P2R reference	65396
	Maker reference	0157925

SCREW BTR (8X30) OEM PIAGGIO COMMON A LA RANGE-015792

	P2R reference	226756
	Maker reference	1B012506

1B012506-SEAT PASSENGER

	P2R reference	226757
	Maker reference	1B009384

1B009384-LEFT PANEL

	P2R reference	226758
	Maker reference	1B009385

1B009385-RIGHT PANEL

	P2R reference	66579
	Maker reference	479515

WASHER GROWER (6) OEM PIAGGIO COMMON A LA RANGE-479515

	P2R reference	110844
	Maker reference	658848

658848 SCREW

	P2R reference	75974
	Maker reference	1C000285

1C000285-TROUSSE OUTILS

	P2R reference	140377
	Maker reference	584654

EXTRACTEUR/PINCE FOR FUSIBLES OEM PIAGGIO COMMON A LA RANGE-584654

	P2R reference	140376
	Maker reference	582632

582632-TROUSSE D'OUTILS

	P2R reference
	Maker reference	582853

CLÉ PLATE 10-13

	P2R reference	92240
	Maker reference	781230

781230 - TOURNEVIS

	P2R reference	226759
	Maker reference	1B012520

1B012520-SADDLE COVER KIT
