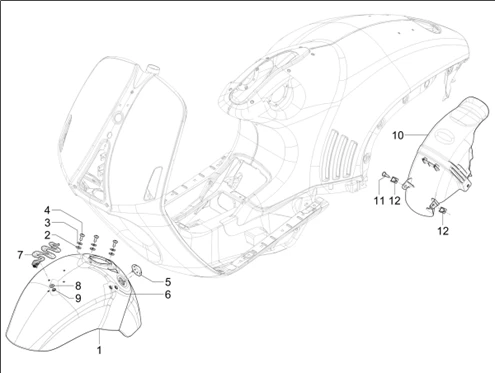

Vehicle Exploded View - VESPA VESPA 946 125 E5+ 12° Anniversary 2025 (EMEA) VESPA

Châssis - parties plastiques - carrosseries : 02.33 LOGEMENT ROUE - GARDE BOUE
Logement roue - Garde boue
Search
1B00075901 - FRONT FENDER WITH I.P.

1
P2R reference P2R reference 226742
Maker reference Maker reference 1B00075901

EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -157716

More information

Quantity required : 1

1B012492000D24 - FRONT FENDER WITH I.P. (PAINTED)

1
P2R reference P2R reference 226743
Maker reference Maker reference 1B012492000D24

1B012492000D24-FRONT FENDER WITH I. P. (PAINTED)

More information

Quantity required : 1

WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880

2
P2R reference P2R reference 65366
Maker reference Maker reference 0138805

WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880

More information

Quantity required : 3

WASHER SPRING (6, 4X16X1) OEM PIAGGIO COMMON A LA RANGE-078307

3
P2R reference P2R reference 65664
Maker reference Maker reference 0783075

WASHER SPRING (6, 4X16X1) OEM PIAGGIO COMMON A LA RANGE-078307

More information

Quantity required : 3

SCREW TORX (6X16) OEM PIAGGIO COMMON A LA RANGE-CM179301

4
P2R reference P2R reference 73366
Maker reference Maker reference CM179301

SCREW TORX (6X16) OEM PIAGGIO COMMON A LA RANGE-CM179301

More information

Quantity required : 3

1B011855400D24 - PLUG FRONT FENDER

5
P2R reference P2R reference 226744
Maker reference Maker reference 1B011855400D24

1B011855400D24-PLUG FRONT FENDER

More information

Quantity required : 1

PLATE ELASTIC OEM PIAGGIO COMMON A LA RANGE-181351

6
P2R reference P2R reference 65797
Maker reference Maker reference 181351

PLATE ELASTIC OEM PIAGGIO COMMON A LA RANGE-181351

More information

Quantity required : 2

1B012491 - "SNAKE" CREST FRONT MUDGUARD

7
P2R reference P2R reference 226745
Maker reference Maker reference 1B012491

181351 - PLAQUETTE

More information

Quantity required : 1

SPACER RUBBER (7X13X2) OEM PIAGGIO COMMON A LA RANGE-479882

8
P2R reference P2R reference 66586
Maker reference Maker reference 479882

SPACER RUBBER (7X13X2) OEM PIAGGIO COMMON A LA RANGE-479882

More information

Quantity required : 4

PLATE ELASTIC OEM PIAGGIO COMMON A LA RANGE-181351

9
P2R reference P2R reference 65797
Maker reference Maker reference 181351

PLATE ELASTIC OEM PIAGGIO COMMON A LA RANGE-181351

More information

Quantity required : 4

676218 - PLAQUE

10
P2R reference P2R reference 92115
Maker reference Maker reference 676218

676218-PLATE

More information

Quantity required : 1

SCREW TORX (6X22) FAIRING OEM PIAGGIO COMMON A LA RANGE-CM179201

11
P2R reference P2R reference 73364
Maker reference Maker reference CM179201

SCREW TORX (6X22) FAIRING OEM PIAGGIO COMMON A LA RANGE-CM179201

More information

Quantity required : 1

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

12
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 2
