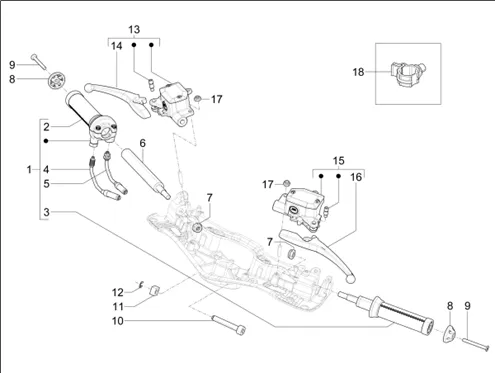

Vehicle Exploded View - VESPA VESPA 946 125 E5+ 12° Anniversary 2025 (EMEA) VESPA

Guidon/direction : 03.06 GUIDON - MAÎTRE CYLINDRE
Guidon - Maître cylindre
Search
CM324006000Z3 - MANCHON COMMANDE ACCELERATEUR COMPLET

1
P2R reference P2R reference 226777
Maker reference Maker reference CM324006000Z3

CM324006000Z3-SLEEVE CONTROL ACCELERATEUR COMPLETE

More information

Quantity required : 1

CM258413 - RIGHT HANDLE WITH THROTTLE TUBE

2
P2R reference P2R reference 226778
Maker reference Maker reference CM258413

CM258413-RIGHT HANDLE WITH THROTTLE TUBE

More information

Quantity required : 1

CM258414 - LEFT HANDLE WITH HANDLEBAR INSERT

3
P2R reference P2R reference 226779
Maker reference Maker reference CM258414

CM258414-LEFT HANDLE WITH HANDLEBAR INSERT

More information

Quantity required : 1

1C006093 - TRANSMISSION COMMANDE OUVERTURE GAZ

4
P2R reference P2R reference 226780
Maker reference Maker reference 1C006093

1C006093-TRANSMISSION CONTROL OUVERTURE THROTTLE

More information

Quantity required : 1

1C006094 - TRANSMISSION COMMANDE FERMETURE GAZ

5
P2R reference P2R reference 226781
Maker reference Maker reference 1C006094

1C006094-TRANSMISSION CONTROL LATCH THROTTLE

More information

Quantity required : 1

675571 - EL!MENT COLL.

6
P2R reference P2R reference 92029
Maker reference Maker reference 675571

675571-ELEMENT COLL.

More information

Quantity required : 1

NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440

7
P2R reference P2R reference 63765
Maker reference Maker reference 0024405

NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440

More information

Quantity required : 2

676220 - MASSE ANTIVIBRATILE GUIDON

8
P2R reference P2R reference 92116
Maker reference Maker reference 676220

676220-MASSE ANTIVIBRATILE HANDLEBAR

More information

Quantity required : 2

SCREW BTR HEAD FRAISEE (6X30) HANDLEBAR END OEM PIAGGIO 125 VESPA 946 2011 >-1B000604

9
P2R reference P2R reference 75628
Maker reference Maker reference 1B000604

SCREW BTR HEAD FRAISEE (6X30) HANDLEBAR END OEM PIAGGIO 125 VESPA 946 2011 >-1B000604

More information

Quantity required : 2

1B000324 - VIS

10
P2R reference P2R reference 75549
Maker reference Maker reference 1B000324

SCREW BTR (10) OEM PIAGGIO COMMON A LA RANGE-1B000324

More information

Quantity required : 1

NUT CARRE (M10) OEM PIAGGIO 125 PX VESPA-070620

11
P2R reference P2R reference 74153
Maker reference Maker reference 0706205

NUT CARRE (M10) OEM PIAGGIO 125 PX VESPA-070620

More information

Quantity required : 1

CLIPS OEM PIAGGIO COMMON A LA RANGE-005967

12
P2R reference P2R reference 63798
Maker reference Maker reference 0059675

CLIPS OEM PIAGGIO COMMON A LA RANGE-005967

More information

Quantity required : 1

CM089904 - MAITRE CYLINDRE

13
P2R reference P2R reference 95884
Maker reference Maker reference CM089904

CM089904-MAITRE CYLINDER

More information

Quantity required : 1

1C000156 - LEVIER FREIN

14
P2R reference P2R reference 75946
Maker reference Maker reference 1C000156

1C000156-LEVER BRAKE

More information

Quantity required : 1

CM089903 - MAITRE CYLINDRE DROITE

15
P2R reference P2R reference 95883
Maker reference Maker reference CM089903

CM089903-MAITRE CYLINDER RIGHT

More information

Quantity required : 1

1C000155 - LEVIER FREIN

16
P2R reference P2R reference 75945
Maker reference Maker reference 1C000155

1C000155-LEVER BRAKE

More information

Quantity required : 1

1A010205 - ECROU

17
P2R reference P2R reference 146192
Maker reference Maker reference 1A010205

1A010205-NUT

More information

Quantity required : 1

COLIIER PINCE OEM PIAGGIO COMMON A LA RANGE-CM006905

18
P2R reference P2R reference 72907
Maker reference Maker reference CM006905

COLIIER PINCE OEM PIAGGIO COMMON A LA RANGE-CM006905

More information

Quantity required : 1
