Vehicle Exploded View - VESPA VESPA 946 125 E5+ 12° Anniversary 2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

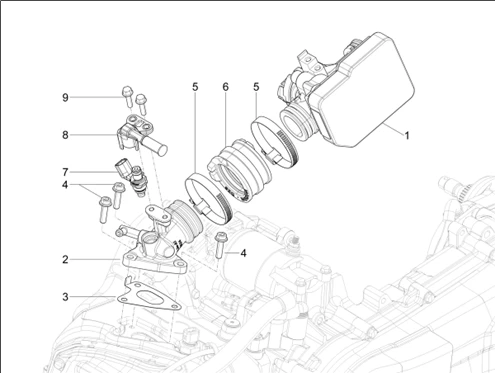

Moteur : 01.36 BOÎTIER PAPILLON - INJECTEUR - RACCORD D'ADMISSION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1348/Vespa_946_125_E5_12_Anniversary_2025_EMEA_01.36.png)
1 |
CM3367047-HOUSING THROTTLE BODY WITH ECU More informationQuantity required : 1 |
||||||
|
2 |
1A027315-FITTING D'ADMISSION WITH PIECES INTERN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/2/3/4/img/127234.jpg)
3 |
GASKET MANIFOLD FITTING INTAKE OEM PIAGGIO 125 FLY, LIBERTY, PRIMAVERA, SPRINT 2013 >-1A003750 More informationQuantity required : 1 |
||||||
|
4 |
1A011564-BOLT M6 X 22 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/5/5/6/img/111556.jpg)
5 |
CLAMP SERRAGE TUBE 40-60 OEM PIAGGIO COMMON A LA RANGE-614188 More informationQuantity required : 2 |
||||||
|
6 |
1A025041-INTAKE FITTING COUPLING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/7/4/img/127574.jpg)
7 |
INJECTEUR OEM PIAGGIO 50-125 LIBERTY, PRIMAVERA, SPRINT IGET 3 SOUPAPES-1D000698 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/1/8/img/149118.jpg)
8 |
BODY/BRACKET D'INJECTEUR OEM PIAGGIO 50 ZIP, LIBERTY, VESPA 2018 >-1A003720 More informationQuantity required : 1 |
||||||
|
9 |
1A003001-SCREW PARKER More informationQuantity required : 2 |
