Vehicle Exploded View - VESPA VESPA 946 125 E5+ 12° Anniversary 2025 (EMEA) VESPA

Châssis - parties plastiques - carrosseries : 02.32 COUVERTURES LATERALES - SPOILER

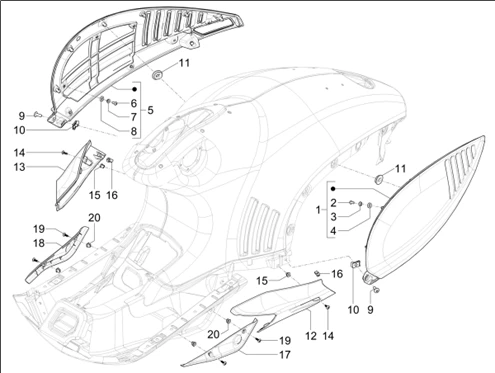

Couvertures laterales - Spoiler
Search
1B000307000D24 - COFFRE LATERAL GAUCHE COMPLET

1
P2R reference P2R reference 226738
Maker reference Maker reference 1B000307000D24

1B000307000D24-UNDERSEAT COMPARTMENT LATERAL LEFT COMPLETE

More information

Quantity required : 1

SCREW BTR HEAD BOMBEE (5X10) OEM PIAGGIO COMMON A LA RANGE-651014

2
P2R reference P2R reference 68173
Maker reference Maker reference 651014

SCREW BTR HEAD BOMBEE (5X10) OEM PIAGGIO COMMON A LA RANGE-651014

More information

Quantity required : 6

1B000266 - BAGUE

3
P2R reference P2R reference 75517
Maker reference Maker reference 1B000266

1B000266-BUSH

More information

Quantity required : 6

1B000267 - ENTRETOISE

4
P2R reference P2R reference 75518
Maker reference Maker reference 1B000267

1B000267-SPACER

More information

Quantity required : 6

1B000308000D24 - COFFRE LATERAL DROIT COMPLET

5
P2R reference P2R reference 226739
Maker reference Maker reference 1B000308000D24

1B000308000D24-UNDERSEAT COMPARTMENT LATERAL RIGHT COMPLETE

More information

Quantity required : 1

SCREW BTR HEAD BOMBEE (5X10) OEM PIAGGIO COMMON A LA RANGE-651014

6
P2R reference P2R reference 68173
Maker reference Maker reference 651014

SCREW BTR HEAD BOMBEE (5X10) OEM PIAGGIO COMMON A LA RANGE-651014

More information

Quantity required : 6

1B000266 - BAGUE

7
P2R reference P2R reference 75517
Maker reference Maker reference 1B000266

1B000266-BUSH

More information

Quantity required : 6

1B000267 - ENTRETOISE

8
P2R reference P2R reference 75518
Maker reference Maker reference 1B000267

1B000267-SPACER

More information

Quantity required : 6

SCREW TORX (6X22) FAIRING OEM PIAGGIO COMMON A LA RANGE-CM179201

9
P2R reference P2R reference 73364
Maker reference Maker reference CM179201

SCREW TORX (6X22) FAIRING OEM PIAGGIO COMMON A LA RANGE-CM179201

More information

Quantity required : 4

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

10
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 4

BUFFER/SILENCBLOC DE FAIRING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-1B000888

11
P2R reference P2R reference 65850
Maker reference Maker reference 1B000888

BUFFER/SILENCBLOC DE FAIRING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-1B000888

More information

Quantity required : 12

675512 - COUVERTURE SPOILER GAU.

12
P2R reference P2R reference 92004
Maker reference Maker reference 675512

675512-COVER SPOILER GAU.

More information

Quantity required : 1

67551240D24 - EXTREMITE ARRIERE DE DEFLECTEUR G

12
P2R reference P2R reference 226740
Maker reference Maker reference 67551240D24

67551240D24-EXTREMITE REAR DE DEFLECTOR G

More information

Quantity required : 1

675513 - COUVERTURE SPOILER DR

13
P2R reference P2R reference 92009
Maker reference Maker reference 675513

675513-COVER SPOILER DR

More information

Quantity required : 1

67551340D24 - EXTREMITE ARRIERE DE DEFLECTEUR D

13
P2R reference P2R reference 226741
Maker reference Maker reference 67551340D24

67551340D24-EXTREMITE REAR DE DEFLECTOR D

More information

Quantity required : 1

SCREW TORX (4, 2X13) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178603

14
P2R reference P2R reference 73358
Maker reference Maker reference CM178603

SCREW TORX (4, 2X13) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178603

More information

Quantity required : 2

AGRAPHE/CHEVILLE A EXPENSION OEM PIAGGIO COMMON A LA RANGE-157716

15
P2R reference P2R reference 109019
Maker reference Maker reference 157716

AGRAPHE/CHEVILLE A EXPENSION OEM PIAGGIO COMMON A LA RANGE-157716

More information

Quantity required : 2

AGRAPHE OEM PIAGGIO COMMON A TOUTE LA RANGE-D9004468091

16
P2R reference P2R reference 73404
Maker reference Maker reference D9004468091

AGRAPHE OEM PIAGGIO COMMON A TOUTE LA RANGE-D9004468091

More information

Quantity required : 2

675457 - COUVRE SPOILER GAU.

17
P2R reference P2R reference 91994
Maker reference Maker reference 675457

675457-COVER SPOILER GAU.

More information

Quantity required : 1

675458 - COUVRE SPOILER DRT

18
P2R reference P2R reference 91995
Maker reference Maker reference 675458

675458-COVER SPOILER DRT

More information

Quantity required : 1

SCREW TORX (4, 2X16) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178601

19
P2R reference P2R reference 73357
Maker reference Maker reference CM178601

SCREW TORX (4, 2X16) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178601

More information

Quantity required : 4

AGRAPHE/CHEVILLE A EXPENSION OEM PIAGGIO COMMON A LA RANGE-157716

20
P2R reference P2R reference 109019
Maker reference Maker reference 157716

AGRAPHE/CHEVILLE A EXPENSION OEM PIAGGIO COMMON A LA RANGE-157716

More information

Quantity required : 4
