Vehicle Exploded View - VESPA VESPA 946 125 E5+ 12° Anniversary 2025 (EMEA) VESPA

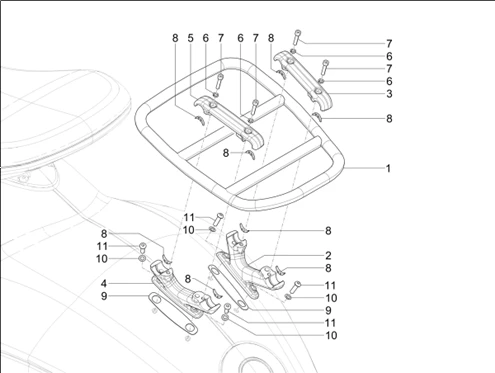

Châssis - parties plastiques - carrosseries : 02.44 PORTE-BAGAGES ARRIÈRE
Porte-bagages arrière
Search
1B011847000D24 - PORTE-BAGAGES ARRIERE

1
P2R reference P2R reference 226760
Maker reference Maker reference 1B011847000D24

1B011847000D24-DOOR-BAGAGES REAR

More information

Quantity required : 1

1B011851000D24 - LOWER RIGHT CARRIER SUPPORT

2
P2R reference P2R reference 226761
Maker reference Maker reference 1B011851000D24

1B011851000D24-LOWER RIGHT CARRIER BRACKET

More information

Quantity required : 1

1B011850000D24 - UPPER RIGHT CARRIER SUPPORT

3
P2R reference P2R reference 226762
Maker reference Maker reference 1B011850000D24

1B011850000D24-UPPER RIGHT CARRIER BRACKET

More information

Quantity required : 1

1B011849000D24 - LOWER LEFT CARRIER SUPPORT

4
P2R reference P2R reference 226763
Maker reference Maker reference 1B011849000D24

1B011849000D24-LOWER LEFT CARRIER BRACKET

More information

Quantity required : 1

1B011848000D24 - UPPER LEFT CARRIER SUPPORT

5
P2R reference P2R reference 226764
Maker reference Maker reference 1B011848000D24

1B011848000D24-UPPER LEFT CARRIER BRACKET

More information

Quantity required : 1

WASHER GROWER (5, 1X8, 5X1, 5) OEM PIAGGIO COMMON A LA RANGE-016405

6
P2R reference P2R reference 65415
Maker reference Maker reference 0164055

WASHER GROWER (5, 1X8, 5X1, 5) OEM PIAGGIO COMMON A LA RANGE-016405

More information

Quantity required : 4

1B000692 - VIS

7
P2R reference P2R reference 142334
Maker reference Maker reference 1B000692

1B000692-SCREW

More information

Quantity required : 4

1B000006 - JOINT

8
P2R reference P2R reference 75391
Maker reference Maker reference 1B000006

1B000006-GASKET

More information

Quantity required : 8

1B000007 - JOINT

9
P2R reference P2R reference 75392
Maker reference Maker reference 1B000007

1B000007-GASKET

More information

Quantity required : 2

WASHER SPRING (6, 4X11X0, 5) OEM PIAGGIO COMMON A LA RANGE-006966

10
P2R reference P2R reference 63838
Maker reference Maker reference 0069665

WASHER SPRING (6, 4X11X0, 5) OEM PIAGGIO COMMON A LA RANGE-006966

More information

Quantity required : 4

SCREW BTR HEAD BOMBEE (6X20) OEM PIAGGIO COMMON A LA RANGE-834038

11
P2R reference P2R reference 69098
Maker reference Maker reference 834038

SCREW BTR HEAD BOMBEE (6X20) OEM PIAGGIO COMMON A LA RANGE-834038

More information

Quantity required : 4
