Vehicle Exploded View - MOTO-GUZZI V11 1100 Cat 1100 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

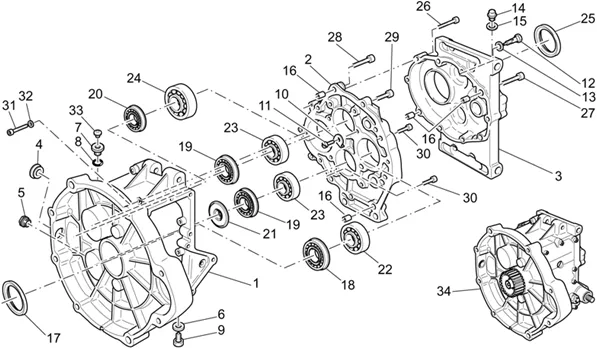

Moteur : 34.14 CARTER DE BOÎTE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/524/V11_Cat_1100_2003-2004_34.14.PNG)
1 |
GU01200290 - SCATOLA CAMBIO NERO More informationQuantity required : 1 |
||||||
|
2 |
GU01200890 - COPERCHIO SCATOLA NERO More informationQuantity required : 1 |
||||||
|
3 |
GU01201390 - COPERCHIO SCAT INGR COMPL NERO LISCIO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/7/7/img/132577.jpg)
4 |
CAP RUBBER REGARD OEM MOTO GUZZI COMMON A LA RANGE-GU93180220 More informationQuantity required : 1 |
||||||
|
5 |
GU01205730-CAP LIVELLO OIL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/6/9/0/img/101690.jpg)
6 |
GASKET (10X18X1. 5) CAP DE VIDANGE OEM PIAGGIO FOR MOTORCYCLE-GUZZI BREVA, GRISO, NEVADA, NORGE, STELVIO, V-7, V-9, V-11, SPORT, CALIFORNIA, AUDACE, ELDORADO, BELAGIO-GU01528930 More informationQuantity required : 1 |
||||||
|
7 |
CAP OBTURATEUR USINAGE OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU12022600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/2/4/img/132224.jpg)
8 |
O-RING (20, 24X2, 62) SHAFT CLUTCH OU CAP OIL DE CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU90706203 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/0/2/2/img/131022.jpg)
9 |
CAP VIDANGE OIL ENGINE/BV/PONT OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU31003766 More informationQuantity required : 1 |
||||||
|
10 |
GU04205500-PLATE More informationQuantity required : 4 |
||||||
|
11 |
GU98280620 - VIS More informationQuantity required : 4 |
||||||
|
12 |
GU04239400-SCREW PERCEE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/1/8/5/img/125185.jpg)
13 |
GASKET/GARNITURE 12, 25 OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU12006400 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/4/8/7/img/126487.jpg)
14 |
CAP DE REMPLISSAGE BOX OF SPEED OU TRANSMISSION OEM PIAGGIO MOTO-GUZZI 750 V7, NEVADA, BREVA, STRADA, TARGA, V30, V50, V65-GU19206501 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/0/9/7/img/129097.jpg)
15 |
GASKET CAP DE VIDANGE OEM PIAGGIO FOR MOTORCYCLE-GUZZI 850 CALIFORNIA 1985 >, 1100 CALIFORNIA 1994 >, 750 V7 2008 >, NEVADA 2012 >, V9 2016 >, V11 2001 >, V100-GU10528900 More informationQuantity required : 1 |
||||||
|
16 |
GU19015020-BUSH More informationQuantity required : 4 |
||||||
|
17 |
GU90404059 - BAGUE D'ETANCHEITE 40X56X8/7 More informationQuantity required : 1 |
||||||
|
18 |
GU92234730 - ROULEMENT A ROULEAUX 30X62X16 More informationQuantity required : 1 |
||||||
|
19 |
GU92234720-BEARING A ROULEAUX 20X52X15 More informationQuantity required : 2 |
||||||
|
20 |
GU92234017-BEARING A ROULEAUX 17X40X12 More informationQuantity required : 1 |
||||||
|
21 |
GU04205100 - DISQUE More informationQuantity required : 2 |
||||||
|
22 |
GU92201423-BALL BEARING 20X52X17 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/8/9/img/132389.jpg)
23 |
BEARING (25X52X15) BELL CLUTCH OEM PIAGGIO MOTO-GUZZI 750 BREVA, NEVADA, SP, STRADA-GU92201225 More informationQuantity required : 2 |
||||||
|
24 |
GU92201141-BALL BEARING 40X68X15 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/1/9/3/img/132193.jpg)
25 |
GASKET RING FOR DRIVE SHAFT (42X56X7) "PIAGGIO GENUINE PART" MOTO-GUZZI V11 -GU90404255 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/5/5/img/133155.jpg)
26 |
SCREW BTR (6X40) OEM PIAGGIO COMMON A LA RANGE-GU98680340 More informationQuantity required : 5 |
||||||
|
26 |
GU98680345-SCREW TCEI M6X45 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/6/1/img/133161.jpg)
27 |
SCREW BTR (8X45) OEM PIAGGIO COMMON A LA RANGE-GU98680445 More informationQuantity required : 3 |
||||||
|
28 |
GU98680440-SCREW TCEI M8X40 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/5/9/img/133159.jpg)
29 |
SCREW BTR (8X35) OEM PIAGGIO COMMON A LA RANGE-GU98680435 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/0/img/67410.jpg)
29 |
SCREW BTR (8X30) OEM PIAGGIO COMMON A LA RANGE-600123 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/8/4/img/133184.JPG)
30 |
SCREW THC M6X30 OEM MOTO GUZZI COMMON A LA RANGE-GU98682330 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/2/img/71852.jpg)
31 |
SCREW BTR (6X35) OEM PIAGGIO COMMON A LA RANGE-AP8150285 More informationQuantity required : 1 |
||||||
|
32 |
GU95008306-WASHER 6, 4X12X1, 2 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/7/8/img/132578.jpg)
33 |
CAP OBTURATEUR ORINE MOTO GUZZI COMMON A LA RANGE-GU93180245 More informationQuantity required : 1 |
||||||
|
34 |
GU01991590 - CAMBIO CPL.NERO More informationQuantity required : 1 |
