Vehicle Exploded View - MOTO-GUZZI V11 1100 Cat 1100 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

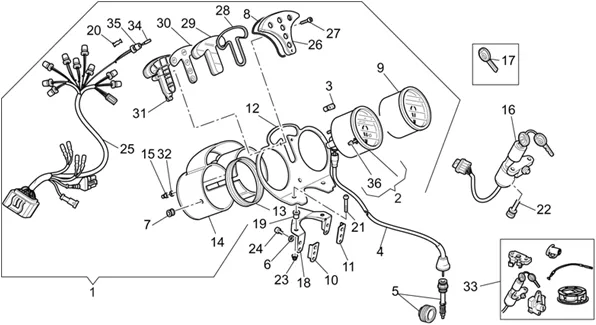

Chassis : 33.40 TABLEAU DE BORD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/524/V11_Cat_1100_2003-2004_33.40.PNG)
1 |
GU01760090 - CRUSCOTTO KM V11 LEMANS SHI More informationQuantity required : 1 |
||||||
|
1 |
GU01760091 - CRUSCOTTO MPH V11 LEMANS SHI More informationQuantity required : 1 |
||||||
|
2 |
GU01761560 - TACHIMETRO More informationQuantity required : 1 |
||||||
|
2 |
GU01762490 - TACHIMETRO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/9/img/66269.jpg)
3 |
AMPOULE/LAMPE 12V 3W W2, 1X9, 5D OEM PIAGGIO COMMON A LA RANGE-294131 More informationQuantity required : 2 |
||||||
|
4 |
GU01760492 - CAVO TACHIMETRO More informationQuantity required : 1 |
||||||
|
5 |
GU01762560 - RENVOI COMPTEUR KM More informationQuantity required : 1 |
||||||
|
6 |
GU95008306-WASHER 6, 4X12X1, 2 More informationQuantity required : 4 |
||||||
|
7 |
GU91551168-RUBBER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/3/4/7/img/128347.jpg)
8 |
GASKET PANEL DE EDGE OEM POTO GUZZI 1100 2003 > 2012-GU03762370 More informationQuantity required : 1 |
||||||
|
9 |
GU01767260 - ELECTRONIC REVOLUTION COUNTER More informationQuantity required : 1 |
||||||
|
10 |
GU01766061-PIASTRINA SX More informationQuantity required : 1 |
||||||
|
11 |
GU01766060-PIASTRINA DX More informationQuantity required : 1 |
||||||
|
12 |
GU03764060-BASE BRACKET INSTRUMENTS More informationQuantity required : 1 |
||||||
|
13 |
GU02762301-GOMMA More informationQuantity required : 2 |
||||||
|
14 |
GU01762090 - SUPPORTO CONTAKM More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/6/4/img/132564.jpg)
15 |
NUT BORGNE (M5) OEM PIAGGIO COMMON A LA RANGE-GU92787205 More informationQuantity required : 4 |
||||||
|
16 |
GU01782500 - BLOCCHETTO AVVIAMENTO-BLOCC. More informationQuantity required : 1 |
||||||
|
17 |
GU30735500-CLE PAS CANTEE UNPAINTED More informationQuantity required : 1 |
||||||
|
18 |
GU01766065 - SUPPORTO CRUSCOTTO NERO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/1/img/73551.jpg)
19 |
RUBBER MOUNT OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU93222023 More informationQuantity required : 3 |
||||||
|
20 |
GU93400012 - PARTIE TERMINALE DOUILLE More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/0/8/1/img/126081.jpg)
21 |
SCREW BTR HEAD BOMBEE (6X10) OEM PIAGGIO COMMON A LA RANGE-GU98370609 More informationQuantity required : 2 |
||||||
|
22 |
GU97260415-SCREW SPECIALE M8X15 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/4/1/img/65941.jpg)
23 |
NUT FLANGE (6) OEM PIAGGIO COMMON A LA RANGE-219277 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/7/9/img/133179.jpg)
24 |
SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-GU98682316 More informationQuantity required : 4 |
||||||
|
25 |
GU01747290-CABLAGGIO More informationQuantity required : 1 |
||||||
|
26 |
GU01766240 - COUVERCLE PORTE-TEMOINS NOIR More informationQuantity required : 1 |
||||||
|
27 |
GU98872120-SCREW More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/4/2/img/102342_20251023145219.jpg)
28 |
GASKET HOUSING TEMOIN INSTRUMENT CLUSTER OEM MOTO GUZZI V11 1999 > 2005-GU02768200 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/4/3/img/102343.jpg)
29 |
PROTECTOR/MOUSSE DE HOUSING TEMOINS DE INSTRUMENT CLUSTER OEM PIAGGIO MOTO-GUZZI 1100 CALIFORNIA, V11, 750 NEVADA-GU02768400 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/3/6/1/img/128361.jpg)
30 |
PANEL WITH LENSES "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 CALIFORNIA, 750 NEVADA, V11 -GU03781150 More informationQuantity required : 1 |
||||||
|
31 |
GU02766300 - SCATOLA PORTASPIE More informationQuantity required : 1 |
||||||
|
32 |
GU95008304-WASHER More informationQuantity required : 4 |
||||||
|
33 |
GU01736891 - KIT SERRATURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/6/0/img/65760.jpg)
34 |
AMPOULE/LAMPE 12V 1, 2W CULOT W2X4. 6D BULB T5 TEMOIN WHITE OEM PIAGGIO COMMON A LA RANGE-164634 More informationQuantity required : 6 |
||||||
|
35 |
GU02768600-PORTALAMPADA More informationQuantity required : 6 |
||||||
|
36 |
GU03762870 - POUSSOIR RAZ More informationQuantity required : 1 |
