Vehicle Exploded View - MOTO-GUZZI V11 1100 Cat 1100 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

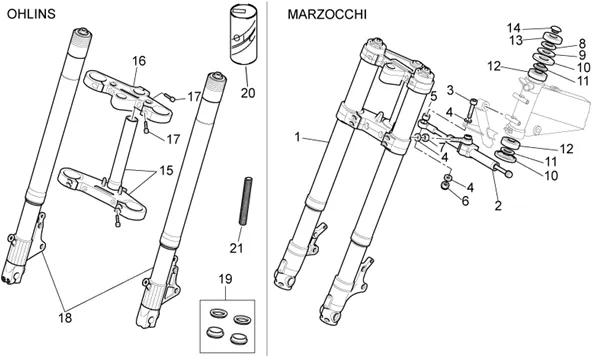

Chassis : 33.31 FOURCHE AV. I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/524/V11_Cat_1100_2003-2004_33.31.PNG)
1 |
GU01490295 - FOURCHE More informationQuantity required : 1 |
||||||
|
2 |
GU01530291-AMMORTIZZATORE DI STERZO More informationQuantity required : 1 |
||||||
|
3 |
GU98370840 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/6/6/img/132666.jpg)
4 |
WASHER PLATE (8, 4X14, 57X1, 6) OEM PIAGGIO COMMON A LA RANGE-GU95005308 More informationQuantity required : 3 |
||||||
|
5 |
GU91180812 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
6 |
GU92630108-NUT More informationQuantity required : 1 |
||||||
|
7 |
GU92606408-NUT More informationQuantity required : 1 |
||||||
|
8 |
GU92700241-NUT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/7/8/9/img/130789.jpg)
9 |
WASHER PLATE (25. 4X50X1) OEM PIAGGIO COMMON A LA RANGE-GU30516500 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/6/1/img/129261.jpg)
10 |
PROTECTOR-POUSSIERE DE SET OF STEERING OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU14517000 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/6/0/img/129260.jpg)
11 |
GU14516700 - RONDELLE D'APPUI More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/5/3/2/img/108532.jpg)
12 |
BEARING DE COLONNE DE STEERING OEM PIAGGIO MOTO-GUZZI 750 BREVIA, NEVADA, V7, 940 BELLAGIO, 1000 DAYTONA, LE-MANS, V10, 1100 V11, CALIFORNIA, SPORT-GU92249225 More informationQuantity required : 2 |
||||||
|
13 |
GU30513401-NUT MOUNTING HEAD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/9/4/7/img/129947.jpg)
14 |
CAP COLONNE DE STEERING OEM PIAGGIO MOTO GUZZI BELLAGIO 940 2007 > 2013, BREVA 750 2003 > 2009, CALIFORNIA 1994 > 2012, NEVADA 1992 > 2013-GU23943410 More informationQuantity required : 1 |
||||||
|
15 |
GU01494060-BASE WITH TUBE * More informationQuantity required : 1 |
||||||
|
16 |
GU01493160-PLATE SUP. FORK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/0/img/67410.jpg)
17 |
SCREW BTR (8X30) OEM PIAGGIO COMMON A LA RANGE-600123 More informationQuantity required : 7 |
||||||
|
18 |
GU01490283 - FORCELLA ANTERIORE More informationQuantity required : 1 |
||||||
|
18 |
GU01490290-" ROD-COUPLE " " OHLINS " " " More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/4/4/1/img/156441.jpg)
19 |
SET OF JOINTS FORK FRONT OEM PIAGGIO APRILIA 1000-1100 RSV-2, RSV-4, TUONO V2, TUONO V4-2B006021 More informationQuantity required : 1 |
||||||
|
19 |
SET OF JOINTS FORK FRONT OEM PIAGGIO APRILIA 1000-1100 RSV-2, RSV-4, TUONO V2, TUONO V4-2B006021 More informationQuantity required : 1 |
||||||
|
20 |
AP8116071-OIL FORK 1LT More informationQuantity required : 1 |
||||||
|
21 |
|
