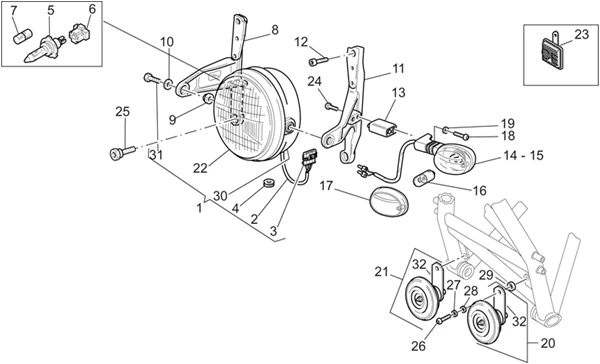

Chassis : 33.41 PHARE AVANT SPORT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/524/V11_Cat_1100_2003-2004_33.41.PNG)
1 |
GU037405405 - PHARE AVANT More informationQuantity required : 1 |
||||||
|
1 |
GU037405455 - PROJECTEUR AV.COMPLET GAUCHE More informationQuantity required : 1 |
||||||
|
2 |
GU02746900-CABLAGGIO More informationQuantity required : 1 |
||||||
|
3 |
GU01756100-CONNETTORE 4 VIE AMP More informationQuantity required : 1 |
||||||
|
4 |
GU91551033-RUBBER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/6/img/66256.jpg)
5 |
AMPOULE/LAMPE 12V 60/55W H4 OEM PIAGGIO COMMON A LA RANGE-292723 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/0/0/5/img/102005.jpg)
6 |
DOOR AMPOULE OEM MOTO GUZZI 1100 CALIFORNIA 1997 > 2012-GU01756220 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/9/img/65759.jpg)
7 |
AMPOULE/LAMPE 12V 4W BA9S OEM PIAGGIO COMMON A LA RANGE-163015 More informationQuantity required : 1 |
||||||
|
8 |
GU01496140-FLANGE RIGHT MATTE BLACK More informationQuantity required : 1 |
||||||
|
9 |
GU14439800 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/6/6/img/132666.jpg)
10 |
WASHER PLATE (8, 4X14, 57X1, 6) OEM PIAGGIO COMMON A LA RANGE-GU95005308 More informationQuantity required : 2 |
||||||
|
11 |
GU01496240-FLANGE LEFT BLACK MATT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/7/9/img/133179.jpg)
12 |
SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-GU98682316 More informationQuantity required : 3 |
||||||
|
13 |
GU017534401-SPACER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/2/6/img/102326.jpg)
14 |
FLASHER-REAR-LEFT "PIAGGIO GENUINE PART" MOTO-GUZZI V11 -GU02750600 More informationQuantity required : 1 |
||||||
|
15 |
FLASHER-REAR-RIGHT "PIAGGIO GENUINE PART" MOTO-GUZZI V11 -GU02750601- More informationQuantity required : 1 |
||||||
|
16 |
GU93450127-LAMPE (OU AMPOULE) 12V-10W More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/8/img/72328.jpg)
17 |
AP8224258 - VITRE CLIGNOTANT; More informationQuantity required : 2 |
||||||
|
18 |
GU98350318-SCREW M6X18 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/2/img/71912.jpg)
19 |
WASHER (6, 4X10X, 7) OEM PIAGGIO COMMON A LA RANGE-AP8152105 More informationQuantity required : 2 |
||||||
|
20 |
883462-CLAXON TONO H More informationQuantity required : 1 |
||||||
|
21 |
883463-CLAXON TONO L More informationQuantity required : 1 |
||||||
|
22 |
GU29740500-GROUP LAMP UNIT More informationQuantity required : 1 |
||||||
|
22 |
GU29740530 - PROJECTEUR More informationQuantity required : 1 |
||||||
|
23 |
GU01781600-CATADIOTTRO AMBRA More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/6/1/img/68461.jpg)
24 |
SCREW BTR HEAD BOMBEE (6X20) OEM PIAGGIO COMMON A LA RANGE-672380 More informationQuantity required : 2 |
||||||
|
25 |
GU01498430-SCREW SPECIALE More informationQuantity required : 1 |
||||||
|
26 |
GU98682320-SCREW M6X20 More informationQuantity required : 2 |
||||||
|
27 |
WASHER (6, 4X10X, 7) OEM PIAGGIO COMMON A LA RANGE-AP8152105 More informationQuantity required : 2 |
||||||
|
28 |
GU95008306-WASHER 6, 4X12X1, 2 More informationQuantity required : 2 |
||||||
|
29 |
GU91180605-SPACER More informationQuantity required : 2 |
||||||
|
30 |
GU03740437 - CALOTTE ARRIERE NOIR More informationQuantity required : 1 |
||||||
|
31 |
GU98064425-SCREW More informationQuantity required : 2 |
||||||
|
32 |
GU01744200 - STAFFA SUPP.CLAXON More informationQuantity required : 2 |
