Vehicle Exploded View - MOTO-GUZZI V11 1100 Cat 1100 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

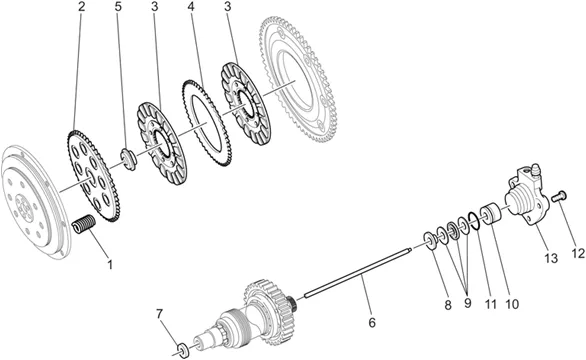

Moteur : 34.13 EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/524/V11_Cat_1100_2003-2004_34.13.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/4/5/9/img/128459.jpg)
1 |
SPRING PLATEAU D'EMBRAYAGE OEM PIAGGIO 850-1200 NORGE, GRISO, BREVA, 1100 V11, 1200 SPORT, 840 BELLAGIO-GU04084100 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/5/3/7/img/130537.jpg)
2 |
DISC CLUTCH OEM PIAGGIO MOTO-GUZZI 850-1100-1200 BREVA, 850-1200 NORGE, 940 BELAGIO, 1100-1200 SPORT, V10, V11, 1000 DAYTONA-GU30082900 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/4/9/9/img/125499.jpg)
3 |
DISC CLUTCH OEM PIAGGIO MOTO-GUZZI 1000-1100 SPORT, CALIFORNIA, QUOTA, 1100 GRISO, V11, BREVA, 850 BREVA, NORGE, 1000 V10, LE-MANS, 940 BELLAGIO-GU050844305 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/1/8/img/129118.jpg)
4 |
DISC CLUTCH INTERCALAIRE OEM PIAGGIO 850-1100-1200 BREVA, 850-1200 NORGE, 940 BELAGIO, 1100-1200 SPORT, V10, V11, 1000 DAYTONA-GU12082300 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/4/5/8/img/128458.jpg)
5 |
BUTEE CLUTCH OEM PIAGGIO MOTO-GUZZI 850-1100 BREVA, GRISO, 850-1200 NORGE, 1100 V11 1999 >, 840 BELLAGIO 2007 >, 1200 SPORT 2006 >-GU04082800 More informationQuantity required : 1 |
||||||
6 |
GU01085730-ASTA * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/1/2/3/3/img/141233.jpg)
7 |
OIL SEAL (8X16X7) OEM MOTO GUZZI V11-GU90400816 More informationQuantity required : 1 |
||||||
|
8 |
GU04086000-DISC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/0/1/7/img/98017.jpg)
9 |
PALLIER DE POUSSEE D'EMBRAYAGE OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-2A000376 More informationQuantity required : 1 |
||||||
|
10 |
GU04086100 - CYLINDRE COMMANDE EMBRAYAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/2/0/img/132220.jpg)
11 |
O-RING (17, 13X2, 62) OEM PIAGGIO COMMON A LA RANGE-GU90706170 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/6/3/img/73563.jpg)
12 |
SCREW BTR HEAD FRAISEE (6X18) OEM PIAGGIO COMMON A LA RANGE-GU98257618 More informationQuantity required : 3 |
||||||
|
13 |
GU01086330 - CILINDRO COMANDO FRIZIONE More informationQuantity required : 1 |
