Vehicle Exploded View - MOTO-GUZZI V11 1100 Cat 1100 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

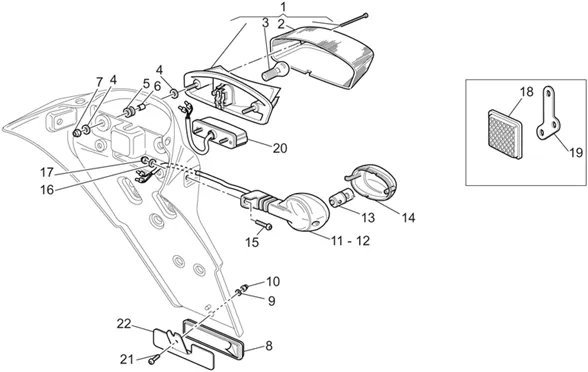

Chassis : 33.43 FEU ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/524/V11_Cat_1100_2003-2004_33.43.PNG)
1 |
LAMP REAR OEM MOTO GUZZI V11 1999 > 2005-GU01740931 More informationQuantity required : 1 |
||||||
|
2 |
GU01741730-VETRO FANALE POST. More informationQuantity required : 1 |
||||||
|
2 |
|
||||||
|
3 |
GU93450224-LAMPE (OU AMPOULE) 12V/5-21W More informationQuantity required : 1 |
||||||
|
4 |
GU95100141-WASHER 6, 5X20X2 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/6/1/img/132361.jpg)
5 |
RUBBER GUIDE FIL (8X18) OEM PIAGGIO COMMON A LA RANGE-GU91551086 More informationQuantity required : 2 |
||||||
|
6 |
GU91180608 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
7 |
GU92630206-NUT M6X1 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/3/3/0/img/131330.jpg)
8 |
CATADIOPTRE REAR OEM PIAGGIO MOTO-GUZZI 1100 V11-GU31781565 More informationQuantity required : 1 |
||||||
|
9 |
GU30577800-WASHER NYLON 5, 5X12X1 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/6/4/img/132564.jpg)
10 |
NUT BORGNE (M5) OEM PIAGGIO COMMON A LA RANGE-GU92787205 More informationQuantity required : 1 |
||||||
|
11 |
FLASHER-REAR-RIGHT "PIAGGIO GENUINE PART" MOTO-GUZZI V11 -GU02750601- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/2/6/img/102326.jpg)
12 |
FLASHER-REAR-LEFT "PIAGGIO GENUINE PART" MOTO-GUZZI V11 -GU02750600 More informationQuantity required : 1 |
||||||
|
13 |
GU93450127-LAMPE (OU AMPOULE) 12V-10W More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/8/img/72328.jpg)
14 |
AP8224258 - VITRE CLIGNOTANT; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/6/1/img/68461.jpg)
15 |
SCREW BTR HEAD BOMBEE (6X20) OEM PIAGGIO COMMON A LA RANGE-672380 More informationQuantity required : 2 |
||||||
|
16 |
GU95100123-WASHER More informationQuantity required : 2 |
||||||
|
17 |
GU92630106-NUT M6X1 More informationQuantity required : 2 |
||||||
|
18 |
GU14781570 - CATADIOPTRE ARRIERE, ROUGE More informationQuantity required : 2 |
||||||
|
19 |
GU30781820 - SUPPORT CATADIOPTRE More informationQuantity required : 2 |
||||||
|
20 |
GU02745200-FANALE TARGA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/4/8/img/68948.jpg)
21 |
SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-831153 More informationQuantity required : 1 |
||||||
|
22 |
GU01475330 - SUPPORT CATADIOPTRE More informationQuantity required : 1 |
