Vehicle Exploded View - MOTO-GUZZI V11 1100 Cat 1100 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

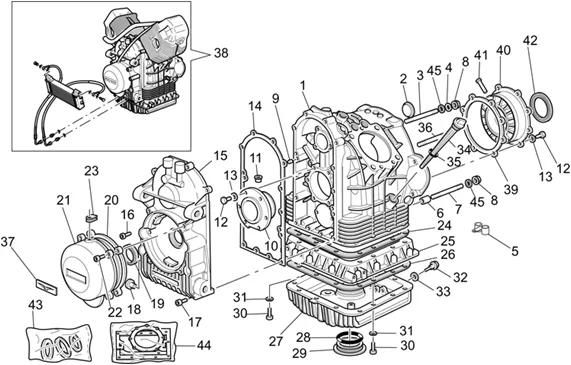

Moteur : 34.01 CARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/524/V11_Cat_1100_2003-2004_34.01.PNG)
1 |
GU01000790 - BASAMENTO MOTORE NERO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/0/1/img/129101.jpg)
2 |
GU12003900 - DISQUE More informationQuantity required : 1 |
||||||
|
3 |
GU96508066-SCREW WITHOUT HEAD M8X66 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/4/img/73554.jpg)
4 |
WASHER 8, 4X15X1, 8 COMMON A LA RANGE MOTO GUZZI/APRILIA-GU95008208 More informationQuantity required : 2 |
||||||
|
5 |
GU01424630 - SUPPORTO More informationQuantity required : 1 |
||||||
|
6 |
GU12018900-BUSH D'ACCOUPLEMENT More informationQuantity required : 2 |
||||||
|
7 |
GU96508075-SCREW WITHOUT HEAD M8X75 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/0/img/73550.jpg)
8 |
NUT FLANGE (M8) OEM PIAGGIO COMMON A LA RANGE-GU92660021 More informationQuantity required : 6 |
||||||
|
9 |
GU95512081-GOUPILLE More informationQuantity required : 2 |
||||||
|
10 |
GU140119005 - FLANC COMPLET More informationQuantity required : 1 |
||||||
|
10 |
GU14011901-FLANGE MIN. 0, 2 MM More informationQuantity required : 1 |
||||||
|
11 |
GU12012200-GOUPILLE More informationQuantity required : 1 |
||||||
|
12 |
GU98084425-SCREW More informationQuantity required : 14 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
13 |
WASHER ELASTIC (8X15X0. 3) OEM PIAGGIO COMMON A LA RANGE-GU61270300 More informationQuantity required : 14 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/5/2/5/img/128525.jpg)
14 |
GASKET OF COVER TIMING OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI (ENGINE 2 SOUPAPES)-GU05001231 More informationQuantity required : 1 |
||||||
|
15 |
GU01001400 - COPERCHIO DISTRIBUZIONE More informationQuantity required : 1 |
||||||
|
16 |
GU98682325-SCREW TCEI M6X25 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/2/img/71852.jpg)
17 |
SCREW BTR (6X35) OEM PIAGGIO COMMON A LA RANGE-AP8150285 More informationQuantity required : 6 |
||||||
|
18 |
GU30002100-CAP More informationQuantity required : 1 |
||||||
|
19 |
OIL SEAL/BUSH (28X38X7) OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU90402840 More informationQuantity required : 1 |
||||||
|
20 |
GU18001150-FLANGE More informationQuantity required : 1 |
||||||
|
21 |
GU01001630 - COUVERCLE ALTERNATEUR GRIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/0/2/8/img/133028.jpg)
22 |
SCREW CRUCIFORME (6X30) OEM PIAGGIO COMMON A LA RANGE-GU98310631 More informationQuantity required : 4 |
||||||
|
23 |
GU19007700-RUBBER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/3/6/1/img/101361.jpg)
24 |
GU01003650 - GUARNIZIONE FLANGIA More informationQuantity required : 1 |
||||||
|
25 |
GU01003290 - FLANGIA NERA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/3/6/0/img/101360.jpg)
26 |
GASKET OF CASING ENGINE OEM PIAGGIO MOTO-GUZZI 1100 SPORT, V10, V11, 1000 DAYTONA-GU01003600 More informationQuantity required : 1 |
||||||
|
27 |
GU01003590 - COPPA OLIO MOTORE NERO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/5/2/img/132252.jpg)
28 |
GU90706948 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
|
29 |
GU01003400-COPERCHIETTO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/8/2/img/133182.jpg)
30 |
GU98682322 - VIS M6X22 More informationQuantity required : 28 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
31 |
WASHER PLATE (6, 15X11X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU95008206 More informationQuantity required : 28 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/0/2/2/img/131022.jpg)
32 |
CAP VIDANGE OIL ENGINE/BV/PONT OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU31003766 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/0/9/7/img/129097.jpg)
33 |
GASKET CAP DE VIDANGE OEM PIAGGIO FOR MOTORCYCLE-GUZZI 850 CALIFORNIA 1985 >, 1100 CALIFORNIA 1994 >, 750 V7 2008 >, NEVADA 2012 >, V9 2016 >, V11 2001 >, V100-GU10528900 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/5/3/1/img/128531.jpg)
34 |
GU05004930-CAP NIVEAU OIL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/2/2/img/132222.jpg)
35 |
O-RING (17, 86X2, 62) OEM MOTO GUZZI COMMON A LA RANGE-GU90706178 More informationQuantity required : 1 |
||||||
|
36 |
GU96508051-SCREW WITHOUT HEAD M8X51 More informationQuantity required : 2 |
||||||
|
37 |
GU02517700 - ÉTIQUETTE ADHESIVE More informationQuantity required : 1 |
||||||
|
38 |
GU01991091 - MOTORE CPL.NERO More informationQuantity required : 1 |
||||||
|
38 |
Moteur noir |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/5/0/0/img/125500.jpg)
39 |
GASKET OF FLASQUE COTE CLUTCH OEM MOTO-GUZZI COMMON A LA RANGE-GU05011830 More informationQuantity required : 1 |
||||||
|
40 |
GU120114005 - BRIDE COMPLETE More informationQuantity required : 1 |
||||||
|
40 |
GU12011401-FLANGE MIN. 0, 2 MM More informationQuantity required : 1 |
||||||
|
40 |
GU12011402-FLANGE MIN. 0, 4 MM More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/0/7/img/129107.jpg)
40 |
FLASQUE COTE CLUTCH MIN. 0, 6 MM OEM PIAGGIO MOTO-GUZZI ENSEMBLE DE LA RANGE-GU12011403 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/0/8/img/129108.jpg)
41 |
PIN FOR REAR BEARING "PIAGGIO GENUINE PART" COMMON FOR ALL MOTO-GUZZI RANGE -GU12011700 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/1/8/4/img/125184.jpg)
42 |
GASKET VILLEBREQUIN COTE CLUTCH OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU90405367 More informationQuantity required : 1 |
||||||
|
43 |
GU01999030 - KIT GUARNIZIONI CAMBIO/TRAS. More informationQuantity required : 1 |
||||||
|
44 |
GU01999530 - KIT PARAOLI CAMBIO/TRAS. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
45 |
WASHER (8, 4X13X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU14615901 More informationQuantity required : 6 |
