Vehicle Exploded View - MOTO-GUZZI V11 1100 Cat 1100 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

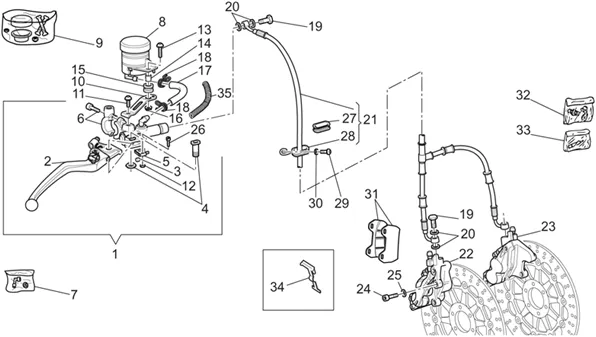

Chassis : 33.36 SYS.FREIN AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/524/V11_Cat_1100_2003-2004_33.36.PNG)
1 |
FRONT BRAKE MASTER CYLINDER- "PIAGGIO GENUINE PART" MOTO-GUZZI V11 -GU01660140- More informationQuantity required : 1 |
||||||
|
2 |
GU01605640 - LEVA FRENO ANT.ALLUMINIO LUCIDO More informationQuantity required : 1 |
||||||
|
3 |
GU92295708 - BILLE More informationQuantity required : 1 |
||||||
|
4 |
GU27604815-PIVOT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/9/6/5/img/130965.jpg)
5 |
CONTACTEUR BRAKE FRONT OEM MOTO GUZZI COMMON A LA RANGE 2005 <-GU30749860 More informationQuantity required : 1 |
||||||
|
6 |
GU01530582-CAVALLOTTO More informationQuantity required : 1 |
||||||
|
7 |
GU19659500-GR. REVISION RACCORDDE POMP More informationQuantity required : 1 |
||||||
|
8 |
GU30665000 - RESERV.HUILE FREINS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/9/1/5/img/130915.jpg)
9 |
COVER TANK BRAKE FLUID FRONT OEM PIAGGIO MOTO-GUZZI 1000 LE-MANS, STRADA, GT, DAYTONA, 1100 SPORT, V11, CALIFORNIA-GU30661100 More informationQuantity required : 1 |
||||||
|
10 |
GU01661460-BRACKET TANK More informationQuantity required : 1 |
||||||
|
11 |
GU98230613-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/5/7/img/132457.JPG)
12 |
NUT (1X4) SERRAGE BRAKE MASTER CYLINDER AV OEM PIAGGIO MOTO-GUZZI-GU92601002 More informationQuantity required : 2 |
||||||
|
13 |
GU98223620-SCREW More informationQuantity required : 1 |
||||||
|
14 |
GU91180617-SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/7/0/img/132370.jpg)
15 |
RUBBER (8X18) OEM MOT GUZZI-GU91551167 More informationQuantity required : 1 |
||||||
|
16 |
GU92660604-NUT More informationQuantity required : 1 |
||||||
|
17 |
GU00823950050-T GOMMA 5X9 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/0/img/131930.jpg)
18 |
GU61108500-CLAMP D9 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
19 |
SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
20 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 6 |
||||||
|
21 |
GU01658831 - TUYAU FREIN COMPLETE GRIS More informationQuantity required : 1 |
||||||
|
22 |
GU01652330 - PINZA FRENO ANT.DX ORO More informationQuantity required : 1 |
||||||
|
23 |
GU01652230 - PINZA FRENO ANT.SX ORO More informationQuantity required : 1 |
||||||
|
24 |
GU98683530 - VIS M10X30 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/9/img/71929.jpg)
25 |
WASHER GEAR OIL PUMP (10, 5X16X1) OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-AP8152220 More informationQuantity required : 4 |
||||||
|
26 |
GU98200214 - VIS More informationQuantity required : 2 |
||||||
|
27 |
GU01658230-GOMMINO More informationQuantity required : 1 |
||||||
|
28 |
GU01658430-GUIDACAVO More informationQuantity required : 1 |
||||||
|
29 |
GU98350310-SCREW M6X20 More informationQuantity required : 1 |
||||||
|
30 |
GU95008306-WASHER 6, 4X12X1, 2 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/1/7/img/73417.jpg)
31 |
PLATE BRAKE OEM PIAGGIO MOTO-GUZZI 750 V-7 AV, NEVADA AV, BREVA AV, 850 GRISO AV, BREVA AV, 1100 BREVA AV, CALIFORNIA AV, 1200 GRISO AV, NORGE AV, STELVIO AV, BREVA AV (PAIRE)-GU01654630 More informationQuantity required : 2 |
||||||
|
32 |
GU01659230-SPURGO + CAPPUCCIO More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/9/2/6/img/101926.jpg)
33 |
PIVOT + SPRING BRAKE CALIPER OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU01659130 More informationQuantity required : 2 |
||||||
|
34 |
GU01659131-MOLLA More informationQuantity required : 2 |
||||||
|
35 |
GU30665860 - RESSORT More informationQuantity required : 1 |
