Vehicle Exploded View - PIAGGIO TYPHOON 50 XR 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

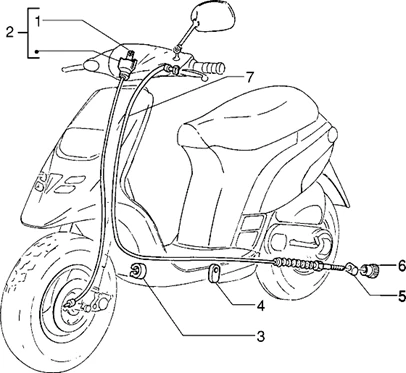

Transmisisons : T35 TRANSMISSIONS-FREIN AR.-COMPTEUR KILOM.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/419/Typhoon_50_XR_1998-2005_T35.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/9/9/9/img/77999.jpg)
1 |
298745 - CABLE COMPTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/9/2/3/img/79923.jpg)
2 |
TRANSMISSION SPEEDOMETER CABLE "PIAGGIO GENUINE PART" (NAKED CABLE LENGTH> 96CM) 50 TYPHOON, NRG 1998>2004 -563621 More informationQuantity required : 1 |
||||||
3 |
272846 - COLLIER More informationQuantity required : 1 |
||||||
|
4 |
PLAQUETTE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/4/img/65794.jpg)
5 |
REAR BRAKE ADJUSTER PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -179640 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/8/img/66088.jpg)
6 |
NUT - TO ADJUST REAR BRAKE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -270310 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/3/0/5/img/77305.jpg)
7 |
REAR BRAKE CABLE KIT "PIAGGIO GENUINE PARTS" 50 TYPHOON 1995>2010, NRG 1995>2000 -270993 More informationQuantity required : 1 |
