Vehicle Exploded View - PIAGGIO TYPHOON 50 XR 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

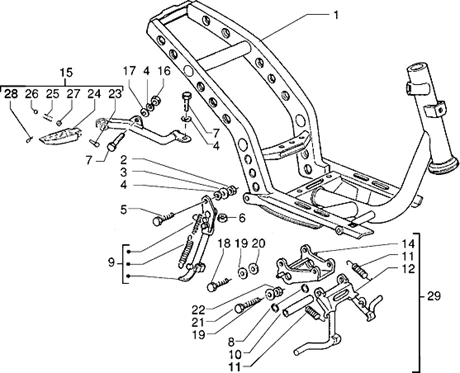

Châssis : T18 CHÂSSIS-BEQUILLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/419/Typhoon_50_XR_1998-2005_T18.PNG)
1 |
2968405 - CADRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
2 |
NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108 More informationQuantity required : 1 |
||||||
|
3 |
118563 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
4 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408 More informationQuantity required : 3 |
||||||
|
5 |
030074 - BOULON S03007400 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/6/8/img/67268.jpg)
6 |
CENTRAL STAND RUBBER PAD "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER + MAXISCOOTER -582885 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/4/img/65644.jpg)
7 |
031116 - BOULON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/2/img/66102.jpg)
8 |
STAND AXLE GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50CC 2 STROKE -271695 More informationQuantity required : 2 |
||||||
|
9 |
SIDE STAND "PIAGGIO GENUINE PART" 50 TYPHOON, NRG 1998>2004 -445367- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/8/7/img/67287.jpg)
10 |
CENTER STAND PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER 50CC -583603 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/3/img/66143.jpg)
11 |
SPRING - FOR CENTRAL STAND "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -278940 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/5/8/2/img/81582.jpg)
12 |
CENTER STAND "PIAGGIO GENUINE PART" 50 TYPHOON 1998>2010 -581505 More informationQuantity required : 1 |
||||||
|
13 |
SPRING - FOR CENTRAL STAND "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -278940 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/1/img/66121.jpg)
14 |
CENTRAL STAND SUPPORT -272929 More informationQuantity required : 1 |
||||||
|
15 |
295453 - REPOSE PIED D More informationQuantity required : 1 |
||||||
|
15 |
296511 - REPOSE PIED G More informationQuantity required : 1 |
||||||
|
16 |
NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
17 |
003058 - RONDELLE S00305800 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/6/5/6/img/94656.jpg)
18 |
SEAL RING GASKET- FOR CRANSHAFT "PIAGGIO GENUINE PART" (ON IGNITION SIDE) 125 VESPA PX -B015668 More informationQuantity required : 2 |
||||||
|
19 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/4/img/65364.jpg)
20 |
MULTIPURPOSE WASHER (8,2X20X2,2)"PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -013861 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/1/7/img/65617.jpg)
21 |
SCREW - FOR CENTRAL STAND SUPPORT (8X70) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 STROKE -030080 More informationQuantity required : 1 |
||||||
|
22 |
NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/8/5/img/66285.jpg)
23 |
295593 - PIVOT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/8/0/img/66280.jpg)
24 |
LEFT OR RIGHT PASSENGER FOOTREST MAT "PIAGGIO GENUINE PARTS" 50 NRG, TYPHOON/GILERA 50 RUNNER -295451 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/5/img/66045.jpg)
25 |
259933 - RESSORT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/1/9/5/3/img/181953.JPG)
26 |
2955916 - BILLE More informationQuantity required : 2 |
||||||
|
26 |
2955916 - BILLE More informationQuantity required : 2 |
||||||
|
27 |
006177 - RONDELLE S00617700 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/2/img/63782.jpg)
28 |
003208 - GOUPILLE More informationQuantity required : 2 |
||||||
|
29 |
CENTER STAND "PIAGGIO GENUINE PART" 50 TYPHOON 1998>2010 -581505 More informationQuantity required : 1 |
