Vehicle Exploded View - PIAGGIO TYPHOON 50 XR 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

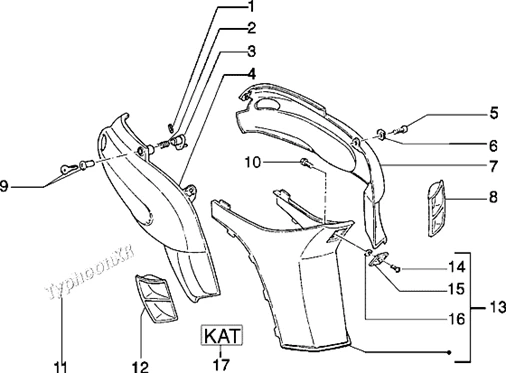

Châssis : T23 COUVERTURES LATERALE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/419/Typhoon_50_XR_1998-2005_T23.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/6/0/img/63860.jpg)
1 |
008808 - EPINGLE S00880800 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/0/3/4/img/77034.jpg)
2 |
257533 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/0/3/3/img/77033.jpg)
3 |
257532 - CAME More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/9/3/7/img/94937.jpg)
4 |
REAR COWL -RIGHT- "PIAGGIO GENUINE PART" 50 TYPHOON 2004> RAW TO BE PAINTED -CM0030025- More informationQuantity required : 1 |
||||||
4 |
FLANC ARD JAUNE 957 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/9/3/8/img/94938.jpg)
4 |
REAR COWL -RIGHT- "PIAGGIO GENUINE PART" 50 TYPHOON 2004> WHITE 724 -CM0030025087- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/9/3/9/img/94939.jpg)
4 |
REAR COWL -RIGHT- "PIAGGIO GENUINE PART" 50 TYPHOON 2004> BLACK 94 -CM0030025090 More informationQuantity required : 1 |
||||||
|
4 |
CM00300250B2 - FLANC ARD TYPHOON O'NEIL GRIS 693 More informationQuantity required : 1 |
||||||
|
4 |
CM00300250D1 - FLANC ARD BLEU COBALT 251 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/4/img/66034.jpg)
5 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259348 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
6 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/9/1/8/img/94918.jpg)
7 |
REAR COWL -LEFT- "PIAGGIO GENUINE PART" 50 TYPHOON ANCIEN MODELE RAW TO BE PAINTED -CM0030015 More informationQuantity required : 1 |
||||||
|
7 |
FLANC ARG JAUNE 957 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/9/2/4/img/94924.jpg)
7 |
REAR COWL -LEFT- "PIAGGIO GENUINE PART" 50 TYPHOON 2004> WHITE 724 -CM0030015087- More informationQuantity required : 1 |
||||||
|
7 |
CM0030015090 - FLANC ARG NOIR 94 EX.923235-923290 More informationQuantity required : 1 |
||||||
|
7 |
CM00300150D1 - FLANC ARG BLEU 251 EX.92320050D1 More informationQuantity required : 1 |
||||||
|
7 |
CM00300150R7 - FLANC ARG ROUGE 894 More informationQuantity required : 1 |
||||||
|
8 |
259905000C - PRISE D'AIR GAUCHE NOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/6/3/img/139463.jpg)
9 |
LOCK KEY SET (3 PIECES) "PIAGGIO GENUINE PART" 50 TYPHOON 1998>2004, 125 SKIPPER, 125 VESPA PX -1792925 More informationQuantity required : 1 |
||||||
|
10 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259348 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/7/6/0/img/80760.jpg)
11 |
576131 - PLAQUETTE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/7/5/6/img/78756.jpg)
12 |
463842000C - PRISE D'AIR DROITE NOIR More informationQuantity required : 1 |
||||||
|
13 |
295813000C - COUVERCLE NOIR More informationQuantity required : 1 |
||||||
|
13 |
295813000L - CACHE MOTEUR C19 BLEU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/5/img/63855.jpg)
14 |
008455 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/1/0/4/img/77104.jpg)
15 |
265093 - CROCHET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
16 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 2 |
||||||
|
17 |
575735 - MONOGRAMME More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/2/1/img/67121.jpg)
17 |
575736 - MONOGRAMME KAT More informationQuantity required : 1 |
