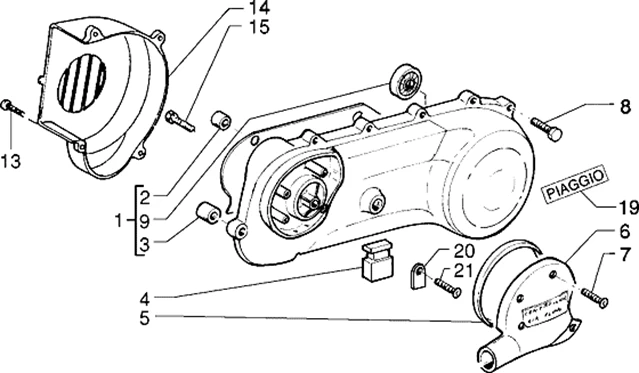

Moteur : T6 COUVERCLE D'EMBRAYAGE-COUVERCLE LIMAÇON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/419/Typhoon_50_XR_1998-2005_T6.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/5/6/img/68756.jpg)
1 |
TRANSMISSION COVER "PIAGGIO GENUINE PART" 50 TYPHOON, NRG, VESPA PRIMAVERA, SPRINT/GILERA 50 RUNNER/APRILIA 50 SR, MOJITO -8284535 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/6/7/img/66167.jpg)
2 |
KICK STARTER BUSH "PIAGGIO GENUINE PART" 50 FLY 2 STROKE, LIBERTY 2 STROKE, NRG, TYPHOON, VESPA LX 2 STROKE/GILERA 50 STALKER, RUNNER -286209 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/1/7/img/66417.jpg)
3 |
BRONZE RING Ø12XØ8X8 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER/MAXISCOOTER -431860 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/3/7/img/66537.jpg)
4 |
463872 - TAMPON BEQUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/1/8/img/66618.jpg)
5 |
482432 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/3/8/img/68938.jpg)
6 |
830821 - COUVERCLE DT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/7/1/img/66471.jpg)
7 |
SCREW - FOR VARIATOR COOLING COVER "PIAGGIO GENUINE PART" GILERA RUNNER / PIAGGIO NRG, TYPHOON, ZIP/ VESPA ET4, LX , S ,PRIMAVERA, SPRINT -435295 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
8 |
SCREW - FOR CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -414838 More informationQuantity required : 13 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/2/4/img/68524.jpg)
9 |
BEARING FOR TRANSMISSION HOUSING "PIAGGIO GENUINE PART" 50 TYPHOON, NRG, LIBERTY, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR/VESPA 50 LX -82521R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/9/img/65399.jpg)
13 |
SCREW - 5X21 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015856 More informationQuantity required : 4 |
||||||
14 |
286935 - CARTER VENTILATEUR More informationQuantity required : 1 |
||||||
|
14 |
487890 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/8/9/img/69089.jpg)
14 |
IGNITION FLYWHEEL COVER "PIAGGIO GENUINE PART" COMMUN A TOUTE LA GAMME SCOOTER 50 CC 2 STROKE -833817 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/6/9/img/72769.jpg)
15 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE -B017632 More informationQuantity required : 8 |
||||||
|
19 |
MONOGRAMME CARTER |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/5/9/img/67059.jpg)
20 |
FIXING PLATE FOR BRAKE CABLE ON CRANKCASE "PIAGGIO GENUINE PART" FLY, LIBERTY, TYPHOON, NRG, ZIP/ VESPA LX, SPRINT, S -564497 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
21 |
SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774 More informationQuantity required : 1 |
||||||
|
21 |
SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774 More informationQuantity required : 1 |
