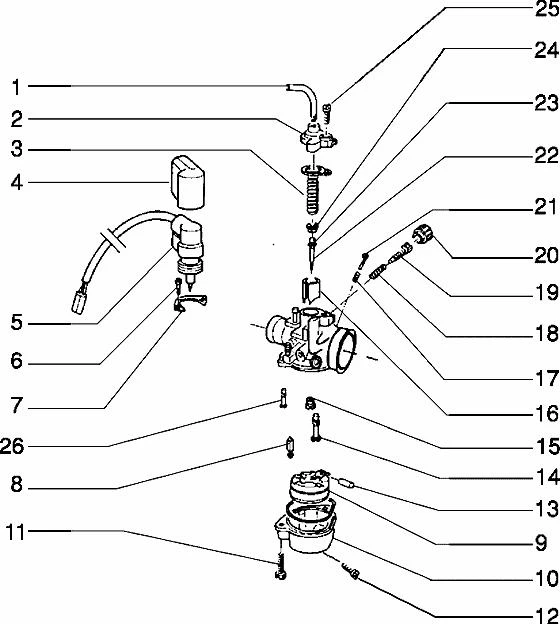

Vehicle Exploded View - PIAGGIO TYPHOON 50 XR 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)
Moteur : T15 CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/419/Typhoon_50_XR_1998-2005_T15.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/9/9/img/65699.jpg)
1 |
ANGLED GUIDING TUE FOR CARB "PIAGGIO GENUINE PART"COMMON FOR ALL SCOOTER 50 CC -113903 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/1/5/img/66415.jpg)
2 |
431654 - COUVERCLE CARBURATEUR QUARTZ More informationQuantity required : 1 |
||||||
2 |
COUVERCLE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/6/img/66206.jpg)
3 |
288875 - RESSORT More informationQuantity required : 1 |
||||||
|
4 |
CAPUCHON |
||||||
|
4 |
COIFFE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/7/2/img/66572.jpg)
5 |
CHOKE "PIAGGIO GENUINE PART" 50 TYPHOON, NRG, ZIP 1995>1999, VESPA ET2/GILERA 50 STALKER, RUNNER -479093 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/2/8/img/66228.jpg)
6 |
289575 - VIS More informationQuantity required : 2 |
||||||
|
6 |
VIS |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/1/img/66201.jpg)
7 |
CHOKE PLATE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 STROKE -288863 More informationQuantity required : 1 |
||||||
|
7 |
PLAQUETTE |
||||||
|
8 |
435708 - POINTEAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/4/6/img/73146.jpg)
8 |
CARB FLOAT NEEDLE VALVE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -CM128501 More informationQuantity required : 1 |
||||||
|
9 |
FLOTTEUR |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/2/5/img/66625.jpg)
9 |
CARB FLOAT BOWL - "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -482916 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/6/4/img/66664.jpg)
10 |
CARB FLOAT CHAMBER "PIAGGIO GENUINE PART" 50 ZIP, NRG, LIBERTY, FLY, VESPA LX/GILERA 50 RUNNER, STALKER/APRILIA 50 RS, SR -484704 More informationQuantity required : 1 |
||||||
|
10 |
CUVE CARBURATEUR WEBER |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/0/img/66200.jpg)
11 |
288862 - VIS More informationQuantity required : 2 |
||||||
|
11 |
VIS |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/2/3/img/66423.jpg)
12 |
SCREW - FOR CARB BOWL "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 -432456 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/9/img/66209.jpg)
13 |
288881 - AXE FLOTTEUR More informationQuantity required : 1 |
||||||
|
13 |
PIVOT |
||||||
|
14 |
CM102014 - GICLEUR 36 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/6/9/img/73069.jpg)
14 |
CM102105 - GICLEUR STARTER More informationQuantity required : 1 |
||||||
|
14 |
CM102109 - GICLEUR STARTER More informationQuantity required : 1 |
||||||
|
14 |
Gicleur starter |
||||||
|
15 |
Gicl.maxi |
||||||
|
15 |
CM101711 - GICLEUR 60 More informationQuantity required : 1 |
||||||
|
15 |
CM101715 - GICL.MAXI More informationQuantity required : 1 |
||||||
|
15 |
CM101716 - GICL.MAXI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/5/1/img/73051.jpg)
15 |
CM101719 - GICL.MAXI More informationQuantity required : 1 |
||||||
|
15 |
CM101721 - GICLEUR More informationQuantity required : 1 |
||||||
|
15 |
Gicleur |
||||||
|
16 |
CM141702 - CLAPET GAZ More informationQuantity required : 1 |
||||||
|
16 |
BOISSEAU |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/7/0/img/65670.jpg)
17 |
085285 - RESSORT More informationQuantity required : 1 |
||||||
|
17 |
RESSORT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/1/img/65751.jpg)
18 |
152608 - VIS More informationQuantity required : 1 |
||||||
|
18 |
RESSORT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/8/img/66208.jpg)
19 |
CARB ADJUSTING SCREW "PIAGGIO GENUINE PARTS" 50 TYPHOON, LIBERTY, ZIP, NRG 1998>2004/GILERA 50 STALKER, RUNNER, DNA -288880 More informationQuantity required : 1 |
||||||
|
19 |
VIS REGLAGE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/7/img/66207.jpg)
20 |
288878 - BOUTON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/0/2/img/73102.jpg)
21 |
SCREW - CARB AIR SCREW "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -CM107701 More informationQuantity required : 1 |
||||||
|
21 |
REGULATEUR |
||||||
|
22 |
434469 - AIGUILLE More informationQuantity required : 1 |
||||||
|
22 |
Pointeau conique |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/0/0/img/73100.jpg)
22 |
NEEDLE FOR CARB "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER 50CC 2STROKE -CM107510 More informationQuantity required : 1 |
||||||
|
22 |
CM107812 - POINTEAU C15 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/4/img/66204.jpg)
23 |
NEEDLE CIRCLIP FOR CARB "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER 50 CC -288872 More informationQuantity required : 1 |
||||||
|
23 |
CLIPS |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/5/img/66205.jpg)
24 |
CONICAL PIN CLIP "PIAGGIO GENUINE PART" COMMON TO THE SCOOTER 50 CC RANGE -288873 More informationQuantity required : 1 |
||||||
|
24 |
ARRET POINTEAU |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/2/img/66202.jpg)
25 |
288865 - VIS More informationQuantity required : 1 |
||||||
|
25 |
VIS |
||||||
|
26 |
431635 - GICLEUR STARTER More informationQuantity required : 1 |
||||||
|
26 |
GICLEUR DEMARRAGE WEBER 50/2 |
