Vehicle Exploded View - PIAGGIO TYPHOON 50 XR 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

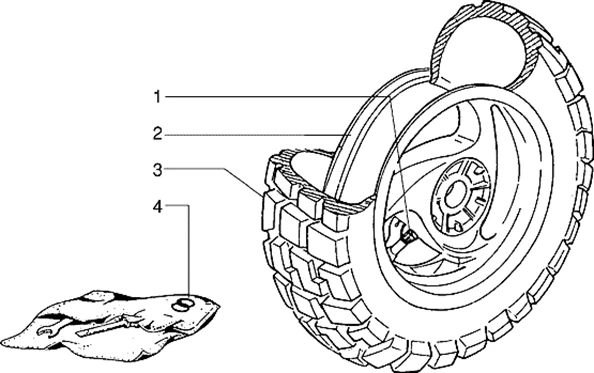

Suspensions-roues : T41 ROUE AR.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/419/Typhoon_50_XR_1998-2005_T41.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/4/img/66094.jpg)
1 |
270991 - VALVE More informationQuantity required : 1 |
||||||
2 |
56442500B1 - ROUE ARR C13-C19-C29 GRIS (5 BATONS) More informationQuantity required : 1 |
||||||
|
3 |
2709460003 - PNEU 120/90-10 56J TL MICHELIN REGGAE More informationQuantity required : 1 |
||||||
|
3 |
PNEU 120/90-10 56J TL HUTCHINS.ROODER |
||||||
|
3 |
PNEU AVT 120/90-10 56J TL HUTCHINSON FK |
||||||
|
3 |
564635 - PNEU SAVA 120/90-10 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/8/9/img/67789.jpg)
4 |
TOOL SET "PIAGGIO GENUINE PART" 50 LIBERTY, NRG, VESPA LX, 125 PX/GILERA 50 RUNNER -635091 More informationQuantity required : 1 |
