Vehicle Exploded View - PIAGGIO TYPHOON 50 XR 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

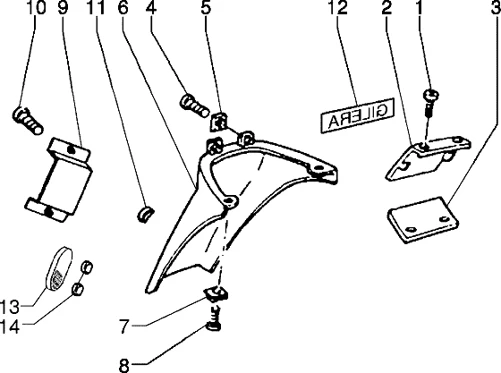

Châssis : T23/A PROTECTION AR.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/419/Typhoon_50_XR_1998-2005_T23_A.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
1 |
SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349 More informationQuantity required : 4 |
||||||
2 |
PARTIE AR SUP BLANC 724 |
||||||
|
2 |
REAR SIDE UPPER ELEMENT "PIAGGIO GENUINE PART"50 TYPHOON 1998>2005 RAW TO BE PAINTED -9234005 More informationQuantity required : 1 |
||||||
|
2 |
PARTIE AR SUP JAUNE 957 |
||||||
|
2 |
92340050B2 - PARTIE AR SUP TYPHOON O'NEIL GRIS 693 More informationQuantity required : 1 |
||||||
|
2 |
92340050D1 - PARTIE AR SUP BLEU 251 More informationQuantity required : 1 |
||||||
|
2 |
92340050R7 - PARTIE AR SUP ROUGE 894 More informationQuantity required : 1 |
||||||
|
2 |
9234905 - PARTIE AR SUP NOIR 94 EX.923435 More informationQuantity required : 1 |
||||||
|
3 |
PARTIE AR INF BLEU 251 |
||||||
|
3 |
ELEMENTO UNION |
||||||
|
3 |
REAR SIDE LOWER ELEMENT "PIAGGIO GENUINE PART" PIAGGIO 50 TYPHOON 1998>2005 RAW TO BE PAINTED -9235005 More informationQuantity required : 1 |
||||||
|
3 |
PARTIE AR INF JAUNE 957 |
||||||
|
3 |
92350050R7 - PARTIE AR INF ROUGE 894 More informationQuantity required : 1 |
||||||
|
3 |
9235875 - PARTIE AR INF BLANC 724 More informationQuantity required : 1 |
||||||
|
3 |
9235005090 - PARTIE AR INF More informationQuantity required : 1 |
||||||
|
3 |
9239005 - PARTIE AR INF BRUT More informationQuantity required : 1 |
||||||
|
3 |
Element coiffe |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/5/6/2/img/93562.jpg)
3 |
REAR SIDE LOWER ELEMENT "PIAGGIO GENUINE PART" 50 TYPHOON 1998>2005 RED 894 -92390050R7 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/4/img/66034.jpg)
4 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259348 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
5 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/6/8/1/img/77681.jpg)
6 |
MUDGUARD - REAR "PIAGGIO GENUINE PART" 50 TYPHOON 1997>2009 BLACK -292900000C More informationQuantity required : 1 |
||||||
|
6 |
COUVERCLE |
||||||
|
6 |
575892000L - PROTECTION More informationQuantity required : 1 |
||||||
|
7 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 2 |
||||||
|
8 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259348 More informationQuantity required : 2 |
||||||
|
9 |
2924654 - PORTE PLAQUE More informationQuantity required : 1 |
||||||
|
9 |
2929224 - PORTE PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/4/1/2/img/77412.jpg)
10 |
273074 - RIVET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/7/6/9/img/79769.jpg)
11 |
561160 - BOUCHON More informationQuantity required : 2 |
||||||
|
12 |
5763200087 - SIGLE PIAGGIO M99 More informationQuantity required : 1 |
||||||
|
12 |
576320009B - SIGLE PIAGGIO M99 More informationQuantity required : 1 |
||||||
|
12 |
5763210087 - SIGLE PIAGGIO M99 More informationQuantity required : 1 |
||||||
|
12 |
576321009B - SIGLE PIAGGIO M99 More informationQuantity required : 1 |
||||||
|
13 |
295983 - CATA AR G More informationQuantity required : 1 |
||||||
|
13 |
295984 - CATA AR D More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/0/7/8/img/77078.jpg)
14 |
259539 - CLIPS More informationQuantity required : 4 |
||||||
|
15 |
PORTE AMPOULE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/0/img/65660.jpg)
16 |
LIGHT BULB 12V5W BA15S TRUNK INTERIOR LIGHT "PIAGGIO GENUINE PART" COMMON TO ALL THE MAXISCOOTER RANGE -071633 More informationQuantity required : 1 |
